OEM Style Japanese Wiring Harness Electrical Connector CN(B) - ET/Armlock Type

Sumitomo Type 250 Housing lance Tang-less Terminal Connector Sets

Common Connectors found on Yamaha, Kawasaki, Suzuki motorcycles

John Deere and Kubota Tractors

All connectors Come complete with male and female terminals.

I recommend buying these as a set, as there are a lot of connectors that look the same, but Terminal orientation may be Different.

Extra Terminals For Housing lance 250 Connector Sets

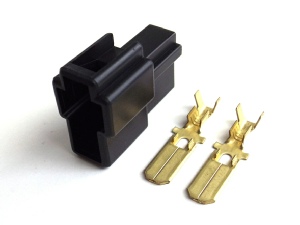

2 pin 6.0mm - .250 Male connector - Connector with Terminals

Terminals Fit wire size .5 - 2 mm (14-20 AWG)

Male Connector Housing            -    Male ET250-2        $1.65 each

Comes complete with housing and terminals

6.3mm - .250 Brass

Male Terminal

.75 - 2 mm (14 - 18 AWG)

Locks into housing

$0.20 each

MST 1418N

6.3mm - .250 Brass

Female Terminal

Made in Japan

2 - 3 mm (12-14) AWG)

Locks into housing

$0.24 each

FST 1214N

6.3mm - .250 Brass

Female Terminal

Made in Japan Sumi 8240-4140

.75 - 2 mm (14-18 AWG)

Locks into housing

$0.23 each

FST 1418N

6.3mm - .250 Brass

Male Terminal

2 - 3 mm2   (12 - 14 AWG)

Locks into housing

$0.25 each

MST 1214N

Crimp tool for Open Barrel Terminals - Eclipse Brand - for  10 -20 AWG

Thumb Screw for quick changing of Dies.

Compact size, Comfort Grip Handles.

Works great for 3.5 and 4mm Bullet Terminals 187 - 250 - 312 Open barrel Terminals

It takes a bit of practice to get the .110 (2.8mm) terminals down, ratchet pressure release will need to be adjusted. These will even work well with non sealed 090 terminals.

I would recommend extra terminals to practice with for .110 and smaller terminals.

Use the Center Die for 18 gauge wire, when using 14-18 terminals.

Note: for 090 and smaller Sealed Terminals, use crimp tool ECT47 Micro Crimper.

$32.00 each - ECT 005

Optional dies are available for closed barrel, and open barrel pin terminals.

For Help using crimp tools check out this link

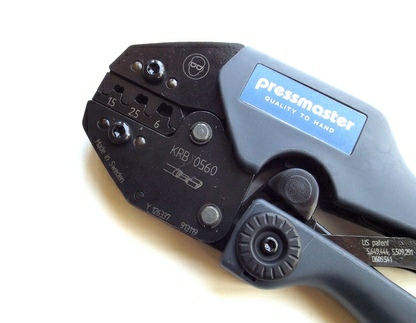

Pressmaster KRB-0560 - Made in Sweden  by Pressmaster

Open Barrel Terminal Crimp Tool For 10 - 20 AWG

By far the best Crimp tool Available!! Built to the Highest Quality Standards!

Good for 50,000 crimps, If you do a lot of crimping with these type terminals,

this is the tool to have.

This crimp tool works better than anything I have ever used for .250-.312 - 3.5mm

and 4mm bullet terminals.  Works great for some non-sealed .090,  .110, and .187

Also sold by Apex tools Xcelite ECP-112

You wont find this one cheaper if you can find it at all.

Comparable to a $300.00 plus set up at a fraction of the price.

Comes in a blister pack and white box.

may be repackaged for shipping due to the length of the factory packaging.

Ratchet release is on the inside of the handle.

                          You will find the Pressmaster KRB-0560 HERE

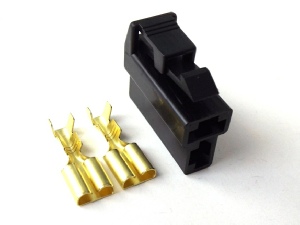

2 pin 6.0mm - .250 Female connector - Connector with Terminals

Terminals Fit wire size .5 - 2 mm (14-20 AWG)

Female Connector Housing        - Female ET250-2       $1.65 each

Comes complete with housing and terminals

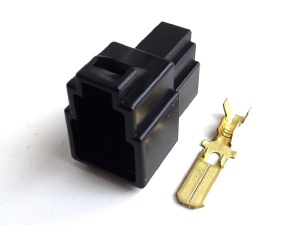

3 pin 6.0mm - .250 Male connector - Connector with Terminals

Terminals Fit wire size .5 - 2 mm (14-20 AWG)

Male Connector Housing            -    Male ET250-3        $1.85 each

Comes complete with housing and terminals

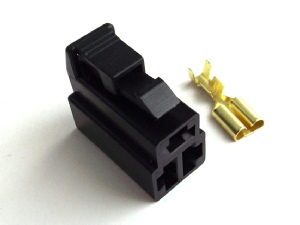

3 pin 6.0mm - .250 Female connector - Connector with Terminals

Terminals Fit wire size .5 - 2 mm (14-20 AWG)

Female Connector Housing         - Female ET250-3       $1.95 each

Comes complete with housing and terminals

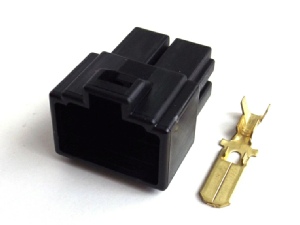

4 pin 6.0mm - .250 Male connector - Connector with Terminals

Terminals Fit wire size .5 - 2 mm (14-20 AWG)

Male Connector Housing            -    Male ET250-4        $2.25 each

Comes complete with housing and terminals

92-02 Mazda Miata - RX7 fan connectors

4 pin 6.0mm - .250 Female connector - Connector with Terminals

Terminals Fit wire size .5 - 2 mm (14-20 AWG)

Female Connector Housing         - Female ET250-4       $2.25 each

Comes complete with housing and terminals

92-02 Mazda Miata - RX7 fan connectors

Honda Acura fuel pump relay, brake pedal switch

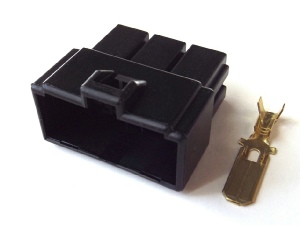

6 pin 6.0mm - .250 Male connector - Connector with Terminals

Terminals Fit wire size .5 - 2 mm (14-20 AWG)

Male Connector Housing            -    Male ET250-6        $2.75 each

Comes complete with housing and terminals

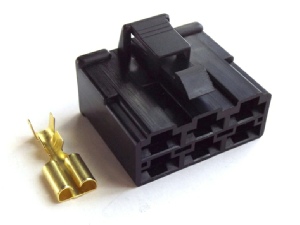

6 pin 6.0mm - .250 Female connector - Connector with Terminals

Terminals Fit wire size .5 - 2 mm (14-20 AWG)

Female Connector Housing         - Female ET250-6       $2.80 each

Comes complete with housing and terminals

Some Yamaha R&R - Rectifier/Regulator connectors

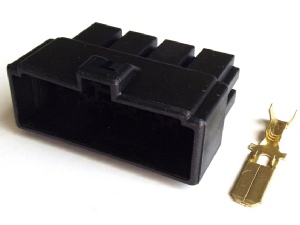

8 pin 6.0mm - .250 Male connector - Connector with Terminals

Terminals Fit wire size .5 - 2 mm (14-20 AWG)

Male Connector Housing            -    Male ET250-8        $2.95 each

Comes complete with housing and terminals

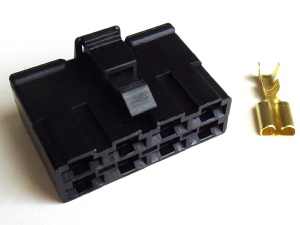

8 pin 6.0mm - .250 Female connector - Connector with Terminals

Terminals Fit wire size .5 - 2 mm (14-20 AWG)

Female Connector Housing         - Female ET250-8       $3.15 each

Comes complete with housing and terminals

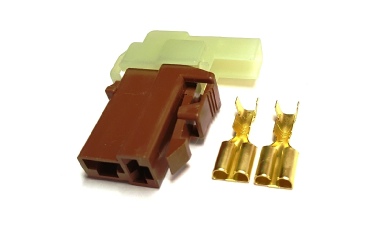

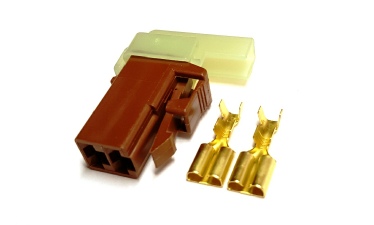

2 pin 6.0mm - .250 Female connector - Connector with Terminals

Terminals Fit wire size .5 - 2 mm (14-20 AWG)

6070-2891 Sumitomo Japan

    Connector Housing   - Female ETN 250-2   $4.65 each

Comes complete with housing and terminals

This housing was used for many applications

Including Honda and Acura

Marker light, turn signal light, running light

Door courtesy light, trunk opener switch

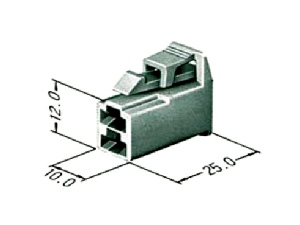

2 pin 6.0mm - .250 Female connector - Connector with Terminals

Terminals Fit wire size .5 - 2 mm (14-20 AWG)

6070-2911 Sumitomo Japan

    Connector Housing - Female ETN 250-2B  $4.85 each No Stock!

Comes complete with housing and terminals

This housing was used for many applications

Including Honda and Acura

Marker light, turn signal light, running light

Door courtesy light, trunk opener switch

Some aftermarket brake pedal switches

2 pin 6.0mm - .250 Female connector - Connector with Terminals

Terminals Fit wire size .5 - 2 mm (14-20 AWG)  6070-2911B

Female Connector Housing  - Female ET250-2C  BLK   $2.25 each

Comes complete with housing and terminals

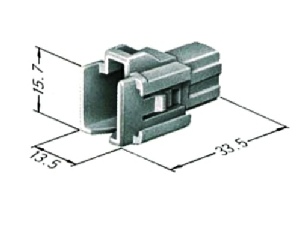

2 pin 6.0mm - .250 Male connector - Connector with Terminals

Terminals Fit wire size .5 - 2 mm (14-20 AWG)  6070-2921

   Male Connector Housing -ET250-2C  Natural  Nylon $4.40 each

Comes complete with housing and terminals

Compatible with above 2 housings ETN250-2B and ET250-2C
