Motorcycle Open Barrel Crimp Tools, Wire Stripers, and  Extraction Removal Tool for Molex, Amp,Yazaki, Sumitomo, Amphenol - Deutsch, JAE terminals, By Pressmaster, Eclipse, Lisle, Channellock, Amphenol, Delphi.

Open Barrel Terminal Crimps are a very effective means to secure the wire to the terminal, usually outlasting everything else on the Motorcycle, A wire crimp is just fine by itself, but in some cases you may want to add a spot of solder to the conductor crimp, or if you are pinching the terminal with a pair of pliers or needle nose, you will definitely want to solder. Take a look at the bottom of the page. These are both nice Quality crimp tools for the budget minded, or novice. Personally I have about six different crimp tools that I use, and a couple of them cost well over $300.00 for the tool Frame, The dies are an additional cost.

Practice will help you become proficient with any new crimp tool, and it will be necessary for a good crimp.

Diagrams Relay's Conn Kits Terminals Home

Keep checking back for links on How to’s, Wiring Diagrams, and other great information.

If you have any Questions, please feel free to Email me at: Joe@cycleterminal.com

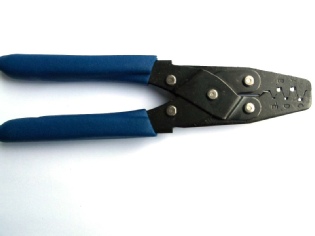

Open Barrel Crimp Tool  For 14 - 24 AWG

Ratcheting Type



Made in USA - NOT recommended for 4mm Bullets and 250 AMP terminals.


I have used this and with a little practice you can get factory quality crimps with it.

This tool does the wire crimp, then the insulation crimps in 2 steps.

Great for Amphenol Terminals, 110, 187, and Sumitomo 040 and 090 terminals.

You can do  12 AWG, But technically the tool is recommended for 14 - 24 AWG.

The larger insulation die will do the 090 Sumitomo wire seals as well.

I only keep a couple in stock due to the high cost.

Great tool for the price.



$89.95 each ECT464






For Help using crimp tools check out this link

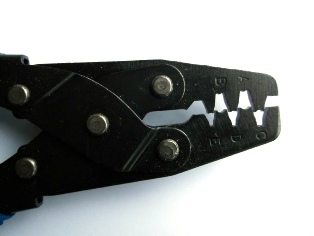

Economy  - Open Barrel Crimp Tool

For Metri-pack 280 and 480 Terminals and Seal 14 - 24 AWG  Made in USA

I have used this and with a little practice you can get factory quality crimps with it. This tool does the wire crimp, then the insulation crimps in 2 steps.

If your not doing this type of crimping all the time, great tool to add to your box, and you cant beat the price. Pick up a few extra terminals to practice with.


These will not do the insulation crimp on the 110, 250 standard terminals



                                                          $32.95 each   ECT41

If you are Soldering your Open barrel Terminal Crimps, Here are some tips!!

It’s not hard to do, just takes some practice and patience.

So pick up extra terminals to practice with, Or use poor crimps that you have replaced. Like I did here.


I solder most of my lighting, battery cable, and high current relay and ground connections.

I use a 60 watt soldering iron, (60 - 70 Watt iron is perfect) gotta get the heat on there quick and get it done before you overheat the terminal, wire or melt the insulation.


Keep the heat where you want the solder to run at the terminal end of the wire, you don't want the solder to wick up the wire under the insulation!!


Just need a tiny bit of solder, don't want blobs of it all over the terminal or wire. (like the picture on the bottom left)


The 3 Terminals on the right are perfect, 60/40 rosin core solder. I personally use  .8 mm,  and 1 mm solder.


Anymore questions please feel free to email me!!!

Current flow for wire length and thickness quick reference chart .

Strand count plays a roll in this as well which is not taken into consideration on this Chart.

The higher the strand count the More current the wire can pass.


As you can see 16 AWG is more than enough for most wiring needs, it is used on Headlight circuits for most Japanese bikes from the factory, with little or no problems.

Economy  - Open Barrel Crimp Tool  For 14 - 24 AWG - For Metri-pack Terminals

Made in USA - NOT recommended for 4mm Bullets and 250 AMP terminals



I have used this and with a little practice you can get factory quality crimps with it. This tool does the wire crimp, then the insulation seal crimp in 2 steps.

Great for Amphenol Terminals, and Sumitomo 040 and 090 terminals.

You can do  12 AWG, But technically the tool is recommended for 14 - 24 AWG.

The larger insulation die will do the 090 Sumitomo wire seals as well.


                                                                 $31.55 each   ECT39                        Back Ordered!

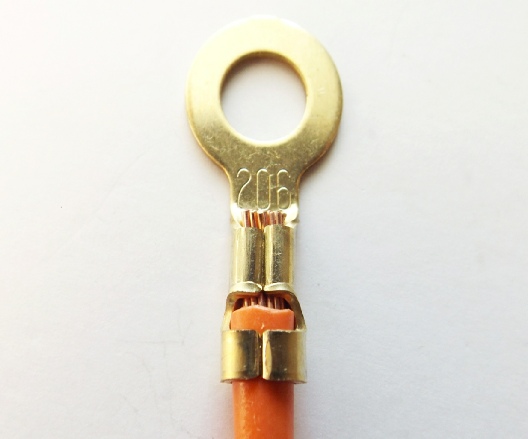

Here is a Proper Terminal crimp!!

14 AWG wire with a Thick 6mm ring terminal.



1 -Notice the insulation crimp does not pierce the wire insulation, but holds it nicely. And there is plenty of insulation for it the grab.


2 - The conductor/wire is extended slightly past the wire crimp.


3 - The terminal is not distorted.


4 -  The conductor/wire crimp has a Bell Mouth on the top edge closest to the insulator.

This means that neither the crimp tool, or the terminal cut into the wire stranding of the conductor.



Note: You may get close, But None of these crimp tools are capable of crimping these thick .81 6mm Ring terminals at this Quality.





For Help using crimp tools check out this link

These are all poor crimps for one reason or another

Open Barrel Crimp Tool

For Metri-pack 280 and 480 Terminals and wire seals 14 - 18 AWG


Ratcheting Type - Made in USA

This one Works great.

This tool does the wire crimp, then the seal crimp in 2 steps.

Pick up a few extra terminals to practice with.

I only keep a couple in stock due to the high cost.


These will not do the insulation crimp on the 110, 250 standard terminals


$94.95 each   DRCT509





For Help using crimp tools check out this link

Pressmaster Open Barrel Terminal Crimp Tool - works best with 10 -16 AWG

by Pressmaster - MCT 4300-3149 - Made in Sweden By far the most versatile tool on this page!!

Very Nice Quality!!

Minimal chance of terminal distortion, due to the way the dies Come together.


You wont find this one cheaper. Comparable to a $400.00 plus set up at a fraction of the price.

For more info see this link Pressmaster                   Die Removal

Come in white box. or blister pack,

may be repackaged for shipping due to the length of the factory packaging.

Ratchet release is on the inside of the handle.

Other dies are available. Including 4.8mm, open Barrel, and  Metri-pack at additional cost.


$139.95 each - with Die pictured Included  MCT 4300-3149


The only down side to this one that I can see is The insulation crimp on anything

18 Gauge and Smaller comes out a little loose, But these were all done with thin wall insulation.

As can be seen in the picture below.Also a little tricky with the male bullet terminals.

Otherwise you will get great crimps every time.

Terminal Extraction and Removal tools

Very Good Quality!!

2 Sizes Available



Narrow 0.9mm       $7.55 each ET120

0.9mm   for those small Terminals .040 and up




Wide     2.2mm       $6.95 each ET123

2.2mm   for the .187 - .250 - .312 Terminals




Both removal tools $12.95 ET 2pc Set

Add to Cart
Please Note:
The handle Color, and design may vary from the supplier
No Tools will be Shipped International without an invoice for additional shipping cost
You will be refunded!!
Add to Cart Add to Cart
Terminal Extraction and Removal tools
Metri-Pack Crimp Tool

Crimp tool for Open Barrel Terminals - Eclipse Brand - for  10 -20 AWG

Thumb Screw for quick changing of Dies.

Compact, great for smaller hands, Comfort Grip Handles.


Works great for 3.5 and 4mm Bullet Terminals 187 - 250 - 312 Open barrel Terminals

It takes a bit of practice to get the .110 (2.8mm) terminals down, ratchet pressure release will need to be adjusted. These will even work well with non sealed 090 terminals.

I would recommend extra terminals to practice with for .110 and smaller terminals.

Use the Center Die for 18 gauge wire, when using 14-18 terminals.




Note: for 090 and smaller Sealed Terminals, use crimp tool ECT47 Micro Crimper.



$32.00 each - ECT 005

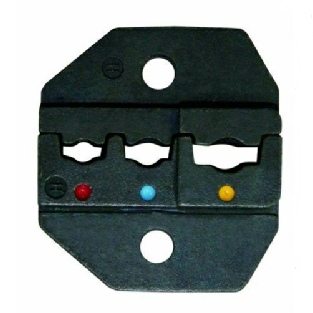

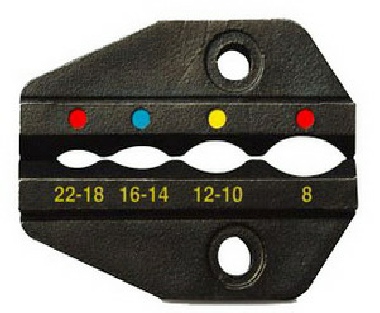

Optional dies are available for closed barrel, and open barrel pin terminals.


For Help using crimp tools check out this link

Ratcheting Crimp Tools for Open Barrel Terminals

Ergonomic Style Crimp tool for Open Barrel Terminals  10 -20 AWG

Ergonomic Style, Thumb Screw for quick changing of Dies

Long Handle, Great for Larger hands.

Everybody claims less compressive force with the Ergo models, if the manufacture and retailer say its so. It must be true right?


Same Die set as Tool list above, only difference being the frame.

Try using the Center Die for 18 gauge wire, when using 14-18 terminals.



None of these Eclipse Tool frames will rust, Very nicely made.


                                                     $43.95 each - ECT Ergo 300    Back Ordered!!

These tools use the same Die as above, Tool frames being the only difference, Both very well made.
Add to Cart

Amphenol AT/DT Wedgelock Removal Tool

For removing wedgelock retainer from male and female AT connector housings

ATM series need no special tools to remove the wedgelocks





$9.95 each ATRT-100






Add to Cart
Metri-Pack and Pin Terminal Crimp Tools
Bullet Terminal - 250 - 312 Terminal Crimps

Wire Stripper - Channellock 958 - Stripper/Cutter

Strips 10 - 20 Gauge wire - Nice Compact 6 1/2” long

This thing is sharp, Made in USA

Good Price!!



$14.95 each  Stripper CH-958






Wire Stripper and Cutters

Terminal Extraction Removal tool

This one is good for all of the .110 .250 and .312 Terminals

Made by Lisle




$14.95 each  ET14900


Terminal Removal tool for Amphenol  ATM  - Deutsch DTM

Deutsch Branded For size 20 Terminals




     AT/RT 20 $5.95 each

Terminal Removal tool for Amphenol  AT  - Deutsch DT

Deutsch Branded for size 16 Terminals


    AT/RT 16 $5.95 each

Add to Cart
Limited Quantities
Limited Quantities
Add to Cart

Molex Branded Crimp Tool for Pin terminals.

For wire sizes 16- 24 awg


Great tool for

JAE series terminals

Amphenol ATM - Deutsch DTM Terminals

Molex MX150





                             $41.95 each   MC1000


Add to Cart
Molex Crimp Tool for Pin Terminals
Add to Cart
Back Order!

Terminal Removal tool for Amphenol  AT  - Deutsch DT

Deutsch Branded for size 12 Terminals


    AT/RT 12 $5.95 each

Limited Quantities
Add to Cart

Round Pin Terminal Extraction and Removal tool set by Eclipse CE-0275

Top Quality!!  5 piece set for Molex, AMP, Yazaki Round pin terminals.


Great kit to have if you work with these types of terminals.

Comes in a nice little pouch for storage.


List $64.87

our price  -10%       PT 5pc Set  $58.95


Specs       Outside Diameter     Inside Diameter



902-395         2.7mm                     2.15mm

902-397         3.2mm                     2.60mm

902-398         3.2mm                     2.80mm

902-394         3.8mm                     3.10mm

902-396         4.0mm                     2.80mm

Size the proper tool with the Pin terminal
You want to remove.
Insert the tool over the terminal
and compress the locking tabs.
Hold the connector, and push the Center Pin
to push the terminal out of the connector.
Add to Cart
Center pin retracted
Center pin Extended

Pressmaster KRB-0560 - Made in Sweden  by Pressmaster

Open Barrel Terminal Crimp Tool For 10 - 20 AWG



By far the best Crimp tool Available!! Built to the Highest Quality Standards!

Good for 50,000 crimps, If you do a lot of crimping with these type terminals,

this is the tool to have.


This crimp tool works better than anything I have ever used for .250-.312 - 3.5mm

and 4mm bullet terminals. Also sold by Apex tools Xcelite ECP-112


You wont find this one cheaper if you can find it at all.

Comparable to a $300.00 plus set up at a fraction of the price.

Comes in a blister pack and white box.

may be repackaged for shipping due to the length of the factory packaging.

Ratchet release is on the inside of the handle.


$169.95 each -  KRB-0560


Sorry, after getting the invoice from UPS to ship these in to the US I had to increase the price.

This may be the only Batch, as the cost of importing them is too high.

Add to Cart
A crimp done with the KRB 0560
Using 18 gauge TXL wire and a .250 Yazaki 14-18 terminal
Pressmaster KRB-0560 and Pressmaster Mobile Crimp Tool MCT 4300-3149

Economy  - Micro Open Barrel Crimp Tool

for MX150, GT-150,  090, 070, 040 sized terminals Made in USA by Rostra

Metri-pack GT150. Sumitomo 090  - 040, JAE 040, Molex MX150, AMP Multi-lock 070 Terminals, Insulation and Wire Seal 16 - 30 AWG

I have used this and  you can get factory quality crimps with it. This tool does the wire crimp, then the insulation or wire seal crimps in 2 steps.

If your not doing this type of crimping all the time, great tool to add to your box, and you cant beat the price. Pick up a few extra terminals to practice with.


These will not do Bullet terminals, or 110, 250 standard terminals



                                                          $33.95 each   ECT47

Add to Cart
Crimp Tool for Pin Terminals
Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart
