OEM Style Japanese Motorcycle Electrical Connectors YPC Series By Yazaki

View Cart

YPC Sealed Connectors  by Yazaki, this type is commonly found on some older Yamaha’s

These come complete with all connector seals and terminals.

These are available in limited quantities and pin count, more in this series coming soon.

What's the Difference between the Male and Female Connector?

Male half of the connector, is the side that the male terminals fit into. Female Half of the connector is the side the female terminals fit into.

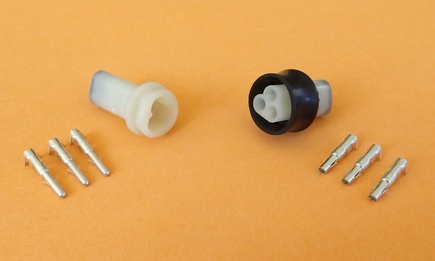

3 pin YPC Sealed Connectors - with Terminals and seal

Terminals Fit wire size .75 - 2 mm (14-18 AWG)


Tough waterproof housing with outer seal, and back side shell seal.



                   $7.85 each    YPC-3 Set                          limited Quantities





Yazaki YPC Series Sealed Connector
$3.85 each    Male YPC-3
$4.15 each   Female YPC-3
Add to Cart

4 pin YPC Sealed Connectors - with Terminals and seal

Terminals Fit wire size .75 - 2 mm (14-18 AWG)


Tough waterproof housing with outer seal, and back side shell seal.



                  $8.65 each    YPC-4 Set



$4.05 each    Male YPC-4
$4.65 each   Female YPC-4
Add to Cart

Yazaki YPC Female Terminal


.75 - 2 mm2  (14 - 18 AWG)

Locks into housing


$0.28 each  YPC Female
No Stock


Yazaki YPC Male Terminal


.75 - 2 mm2  (14 - 18 AWG)

Locks into housing


$0.24 each  YPC Male


Add to Cart

Round Pin Terminal Extraction and Removal tool set by Eclipse

Top Quality!!

5 piece set for Molex, AMP, Yazaki Round pin terminals.

Great kit to have if you work with these types of terminals.

Comes in a nice little pouch for storage.



                     PT 5pc Set  $57.95


Specs       Outside Diameter     Inside Diameter



902-395         2.7mm                     2.15mm

902-397         3.2mm                     2.60mm

902-398         3.2mm                     2.80mm

902-394         3.8mm                     3.10mm

902-396         4.0mm                     2.80mm

Size the proper tool with the Pin terminal
You want to remove.
Insert the tool over the terminal
and compress the locking tabs.
Hold the connector, and push the Center Pin
to push the terminal out of the connector.
Add to Cart
Center pin retracted
Center pin Extended
About Me Kits Crimp tools Terminals Relay kits Relays Shipping Fuse box's Tubing Fuses New Items Connectors Home

6 pin YPC Sealed Connectors - with Terminals and seal

Terminals Fit wire size .75 - 2 mm (14-18 AWG)


Tough waterproof housing with outer seal, and back side shell seal.





$4.95 each    Male YPC-6
Add to Cart
No Stock!!
No Stock!!
No Stock!!
No Stock!!
No Stock!!
