Cycle Terminal

OEM Delphi Weather-pack Sealed Connectors

If you have any Questions, please feel free to Email me Here

Weatherpack 2 pin Female Connector

Terminals Fit wire sizes (16-20 AWG)

Delphi p/n: 12015792

Comes complete with terminals and seal for 16-20 gauge wire

         Delphi WP-2 Female   $1.95 each

Weatherpack 2 pin Male Connector

Terminals Fit wire sizes (16-20 AWG)

Delphi p/n: 12010973

Comes complete with terminals and seal for 16-20 gauge wire

         Delphi WP-2 Male       $1.80 each

Delphi p/n: 12089188

Female Terminal

For wire sizes (16 - 20 AWG)

     Weatherpack Female

     $0.36 each

Weatherpack 3 pin Female Connector Black

Terminals Fit wire sizes (16-20 AWG)

Delphi p/n: 12015793

Comes complete with terminals and seal for 16-20 gauge wire

         Delphi WP-3 Female   $3.15 each

Common Application:
GM /Chevy Throttle position sensor connector 85-92

Weatherpack 3 pin Male Connector

Terminals Fit wire sizes (16-20 AWG)

Delphi p/n: 12010717

Comes complete with terminals and seal for 16-20 gauge wire

         Delphi WP-3 Male       $2.35 each

Weatherpack 6 pin Female Connector Black

Terminals Fit wire sizes (16-20 AWG)

Delphi p/n: 12015799

Comes complete with terminals and seal for 16-20 gauge wire

         Delphi WP-6 Female   $3.80 each

Weatherpack 6 pin Male Connector

Terminals Fit wire sizes (16-20 AWG)

Delphi p/n: 12010975

Comes complete with terminals and seal for 16-20 gauge wire

         Delphi WP-6 Male       $3.55 each

Delphi p/n: 12089040

Male Terminal

For wire sizes (16 - 20 AWG)

     Weatherpack Male

     $0.20 each

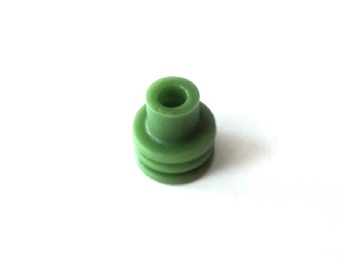

Delphi p/n: 15324982

Wire Seal

For insulation diameter

2.00-2.85 mm

     Wire Seal

      $0.36 each

Delphi p/n: 12010300

Cavity Plug

     Cavity plug

     $0.17 each

Economy  - Weatherpack Open Barrel Crimp Tool  ( will not work with 280 10-12 terminals, or any 630 terminal )

For Wetherpack and Metripackpack 280 and 480 Terminals and Seal 14 - 24 AWG  Made in USA

I have used this and with a little practice you can get factory quality crimps with it. This tool does the wire crimp, then the insulation crimps in 2 steps.

If your not doing this type of crimping all the time, great tool to add to your box, and you cant beat the price. Pick up a few extra terminals to practice with.

These will not do the insulation crimp on the 110, 250 standard terminals

                                                          $32.95 each   ECT41
