OEM Style Japanese Wiring  Connectors -  Sumitomo TS - 187/090 Hybrid Sealed Series

SWS TS 187/090Hybrid Sealed Connectors,Terminals, and Wire Seals.

All connectors Come complete with terminal seal.

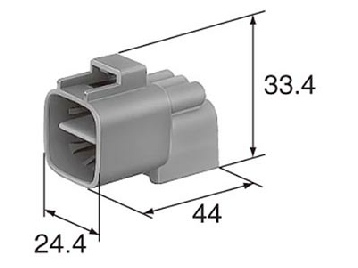

5 pin TS 187 090 Male Connector

Comes with with Terminals and seals

Terminals Fit wire size .2 - .5 mm (20-24 AWG)

Toyota part # 90980-11201

Part Name: 11201WY 05M-GR

Sumitomo 6188-0101 Japan

               Male TS 187-5 HB     $5.60 each

Keep checking back for links on How to’s, Wiring Diagrams, and other great information.

If you have any Questions, please feel free to Email me Here

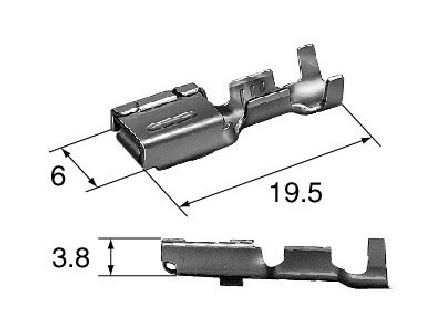

TS .187 Female Terminal

Sumitomo Part Number:  8100-0467

Made in Japan

Compatible with HX Hybrid

Applicable wire size 0.5-1.25mm2 (16-20 AWG)

Material - Brass

Surface treatment  - Tin-plated

  $0.20  each TS 187 Female

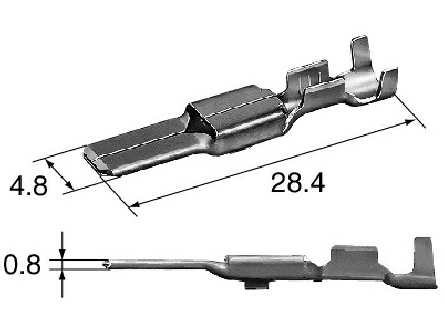

HX/TS/DL  .187 Male Terminal

Sumitomo Part Number:  8232-4220

Made in Japan

Applicable wire size 0.5-1.25mm2 (16-20 AWG)

Material - Brass

Surface treatment  - Tin-plated

       $0.25 each HX 187 Male

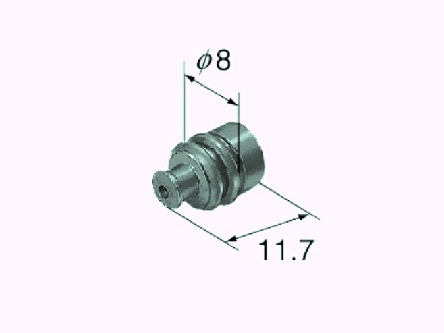

TS/DL 187 Wire Seal

Sumitomo Part Number:  7165-0347

Made in Japan

$0.25 each HX 187 Seal Dk Grn

Cable/Wire overall diameter (mm) 2.0-2.9

Materials Silicone Color

Dark Green

TS090-II Female Terminal

For TL - SL090 sealed series

8100-0461 Japan

For wire sizes .5mm - 1.25mm2 (16 - 20 AWG)

             Female Terminal

                     $0.24 each

TS090-II Wire seal - Small

7165-0439 Japan

For wire sizes .3 - .85 mm (18 - 24 AWG)

           Seal Brown Small

                     $0.20 each

TS090-II Wire seal - Medium

7165-0395 Japan

For wire sizes .5 - 1.25 mm (16 - 20 AWG)

 Seal Dark Green Medium

                     $0.17 each

MT090 Wire seal - Large

7165-8234 Japan

For insulation diameter 1.70-2.7 0 mm  (14-20 AWG)

                  Seal  Medium

                     $0.17 each

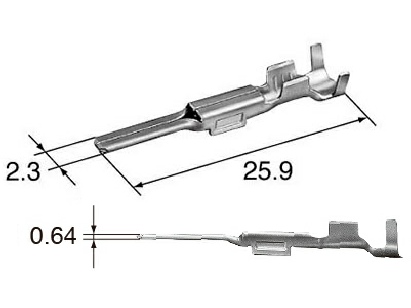

TS090-II Male Terminal

For TL - SL090 sealed series

8100-0458 Japan

For wire sizes .5mm - 1.25mm2 (16 - 20 AWG)

                Male Terminal

                     $0.20 each
