Cycle Terminal

OEM Style - Japanese Motorcycle Connectors - Sumitomo TS-090 Series

View Cart


Some applications include

Toyota TPS - Boost Sensor connector (Toyota part number 90980-10845 )

Polaris TPS - MAP sensor connector

Some early Yamaha R-1, and Suzuki with Mikuni carb's


Honda CBR600, CBR1000 TPS sensor connector

Keep checking back for links on How to’s, Wiring Diagrams, and other information.

If you have any Questions, please feel free to Email me Here

TS-090 Sealed Series

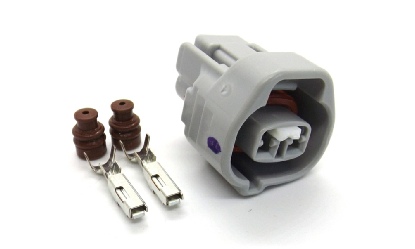

Sumitomo TS090 2-Pin Female Connector

This set comes complete with Terminals and Brown wire seals

Toyota part# 90980-11156, 90980-12634

Sumitomo part# 6189-0249 Japan




                                TS090-2 Female $2.85 each




Some applications include

Add to Cart
About Me Kits Crimp tools Terminals Relay kits Relays Shipping Fuse box's Tubing Fuses New Items Connectors Home

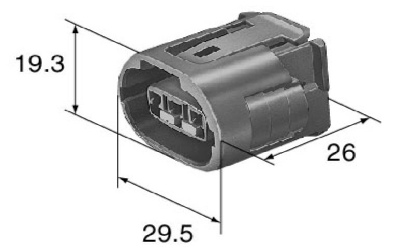

Sumitomo 3-Pin Female Connecto

This set comes complete with Terminals and Brown wire seals

Toyota part # 90980-11349

Sumitomo part# 6189-0443, 6189-0442 Black housing only (aftermarket)

Paer Name 11349W9A03



                               TS090-3B Female $3.35 each





Add to Cart

Sumitomo 3-Pin Female Connector

This set comes complete with Terminals and Brown wire seals

Toyota part# 90980-10845

Sumitomo part#  6189-0179 Japan

Part Name 11016W9A03F-GR


                                 TS090-3 Female $3.80 each




Some applications include


Add to Cart

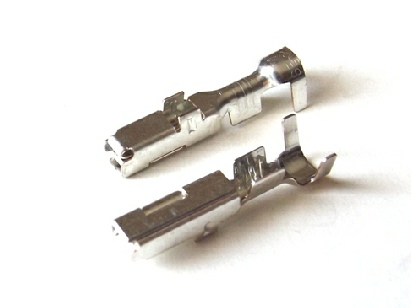

TS090-II Female Terminal

For TL - SL090 sealed series

8100-0461 Japan

For wire sizes .5mm - 1.25mm2 (16 - 20 AWG)


             Female Terminal

                     $0.24 each

Add to Cart

Economy  - Micro Open Barrel Crimp Tool

for RFW090, GT-150,  090, 070, 040 sized terminals Made in USA by Rostra

Sumitomo 090  - 040, JAE 040, Molex MX150, AMP Multi-lock 040 Terminals, Insulation and Wire Seal 16 - 30 AWG

I have used this and  you can get factory quality crimps with it. This tool does the wire crimp, then the insulation or wire seal crimps in 2 steps.

If your not doing this type of crimping all the time, great tool to add to your box, and you cant beat the price. Pick up a few extra terminals to practice with.


These will not do Bullet terminals, or 110, 250 standard terminals



                                                          $33.95 each   ECT47

Add to Cart

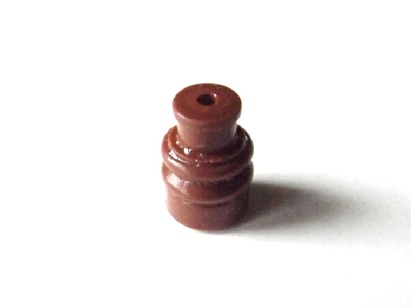

TS090-II Wire seal - Small

7165-0439 Japan

For wire sizes .3 - .85 mm (18 - 24 AWG)



           Seal Brown Small

                     $0.20 each

Add to Cart

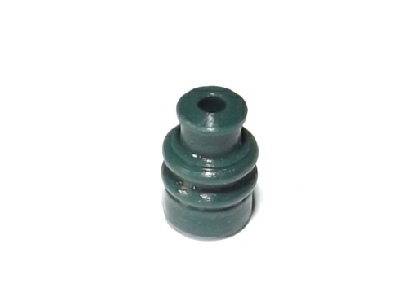

TS090-II Wire seal - Medium

7165-0395 Japan

For wire sizes .5 - 1.25 mm (16 - 20 AWG)



 Seal Dark Green Medium

                     $0.17 each

Add to Cart

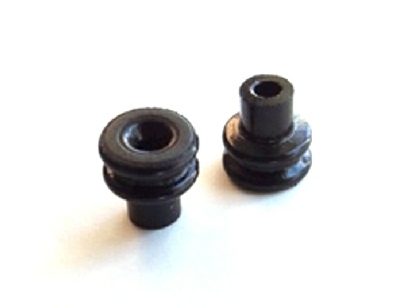

MT090 Wire seal - Large

7165-8234 Japan

For insulation diameter 1.70-2.7 0 mm  (14-20 AWG)



                  Seal  Medium

                     $0.17 each

Add to Cart

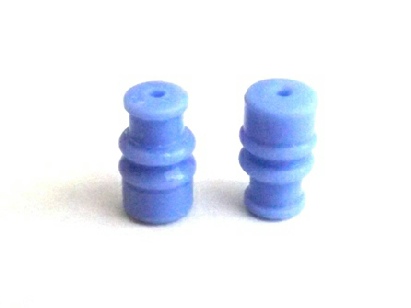

TS090-II Wire seal - Small

Yazaki 090II, Sumi equivalent 7165-0342 Japan

P5:For 5mm Pitch housing

For wire sizes .3 - .85 mm (18 - 24 AWG)


               Seal Blue Small

                     $0.20 each

For use with this connector
Add to Cart

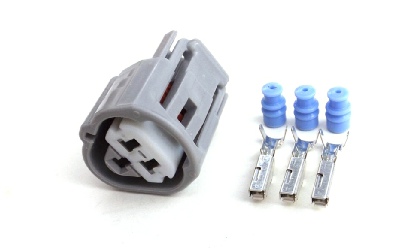

Sumitomo 3-Pin Female TPS Connector

This set comes complete with Terminals and Blue P5 wire seals

Toyota part # 90980-11451

Sumitomo Japan 6189-0486

Part Name 11451W9A03F-GR




                                 TS090-3 Female $5.75 each



This housing has a reduced 4.9mm diameter wire seal.


Some applications include

CBR600-1000 TPS sensor connector

Toyota ECT, CLT, Coolant Temperature Sensor Connector


Add to Cart

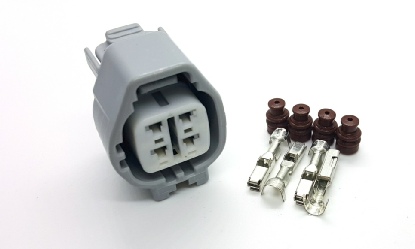

Sumitomo 4-Pin Female Connector

This set comes complete with Terminals and Brown wire seals

Toyota Part# 90980-11028

Sumitomo part# 6189-0629 Japan




                                 TS090-4 Female $3.50 each




Some applications include

Toyota Lezus 98-05 O2 Sensor connector

1JZ-GTE 2JZ-GTE O2 sensor connector


Add to Cart

Cheap Shipping!!

Minimum $5.00 on all orders

Extra Terminals and Crimp Tool
 at bottom of page

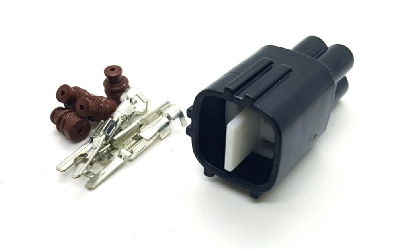

Sumitomo 4-Pin Male Connector

This set comes complete with Terminals and Brown wire seals

Toyota part # 90980-11027

Sumitomo part# 6188-0517 Japan




                                TS090-4 Male     $3.40 each




Some applications include

1JZ-GTE 2JZ-GTE O2 sensor connector

Add to Cart

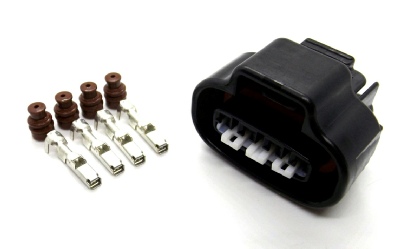

Sumitomo 4-Pin Female Connector

This set comes complete with Terminals and Brown wire seals

Toyota part # 90980-11150

Sumitomo part number 6189-0565 Japan Genuine





                                TS090-4B Female $6.90 each





Some applications include

Toyota Lexus APP - Accelerator Pedal Position Sensor connector

Toyota Lexus Ignition coil connector

Add to Cart

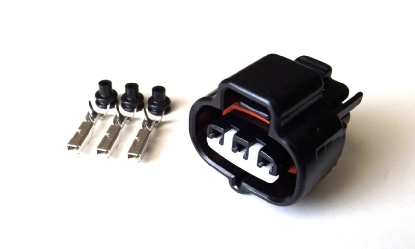

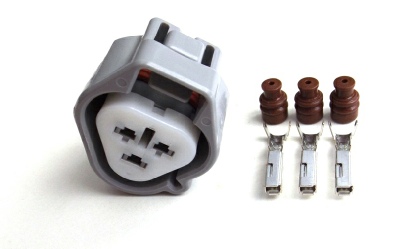

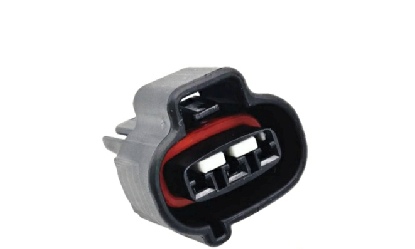

Sumitomo 3-Pin Female TPS Connector

This set comes complete with Terminals and Brown wire seals

Toyota part# 90980-10845 - 90980-10841 - 90980-12636

Sumitomo part# 6189-0099 Japan




                                TS090-3 Female $2.75 each




Some applications include

Toyota TPS - Boost Sensor connector

Polaris TPS - MAP sensor connector

Some early Yamaha R-1, and Suzuki with Mikuni carb's, FZ6R 2009-17, FZ1 2007-14, V-Strom (DL650) 04-06,

Katana GSX600F/GSX750F 98-06,

1999-2007 Suzuki Hayabusa Atmospheric Pressure Sensor - APS

KTM 000700000BZ

Add to Cart

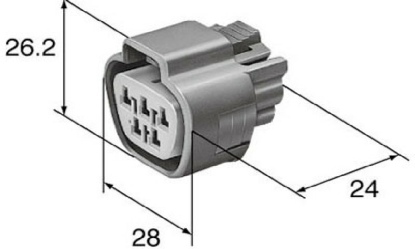

Sumitomo 5-Pin Female Connector

This set comes complete with Terminals and Brown wire seals

Toyota part # 90980-11599

Sumitomo part number 6189-0504 Japan





                                TS090-5 Female $4.90 each





Some applications include

Honda Acura - EGR sensor connector

Toyota Lexus Wiper motor connector

Add to Cart

Sumitomo 2-Pin Female Injector Connector

This set comes complete with Terminals and Brown wire seals

Toyota part# 90980-11875

Sumitomo part# 6189-0611 Japan

Part Name  11875W9A02F-GR



                               TS090-2B Female $2.25 each




Some applications include

Honda-Acura RDX injector connector

Add to Cart

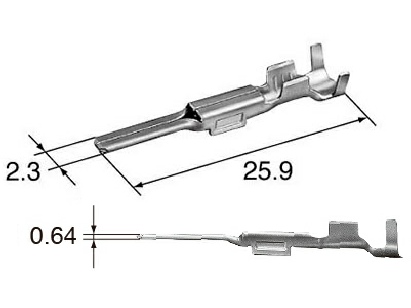

TS090-II Male Terminal

For TL - SL090 sealed series

8100-0458 Japan

For wire sizes .5mm - 1.25mm2 (16 - 20 AWG)


                Male Terminal

                     $0.20 each

Add to Cart

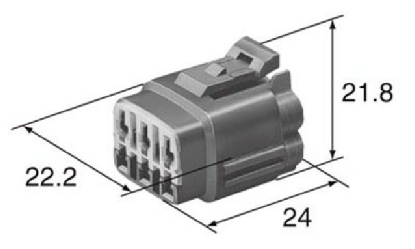

Sumitomo 6-Pin Female Connector

This set comes complete with Terminals and Brown wire seals

Toyota part #

Sumitomo part number 6189-0368 Japan Genuine





                                TS090-6 Female $3.85 each





Some applications include


Add to Cart

Sumitomo 10-Pin Female Connector

This set comes complete with Terminals and Brown wire seals

Toyota part # 90980-11653

Sumitomo part number 6189-0515

Part name 11653W9A10F-B Japan Genuine




                                TS090-10 Female $9.90 each





Some applications include

Toyota Tacoma 5VC Igniter Connector


Add to Cart

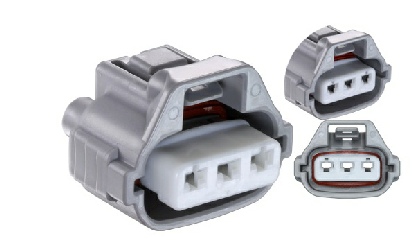

Sumitomo TS090 3-Pin Female Connector

This set comes complete with Terminals and Brown wire seals

Toyota Part# 90980-11020

Sumitomo part# 6189-0177 Japan

Part Name 11020W9A03F-GR



                               TS090-3C Female $3.90 each




Some applications include



Add to Cart

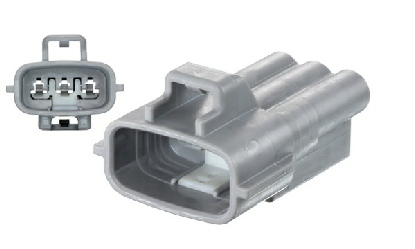

Sumitomo TS090 3-Pin Male Connector

This set comes complete with Terminals and Brown wire seals

Toyota part # 90980-11607

Sumitomo part# 6188-0328 Japan

Part Name 11607W9A03M-GR



                               TS090-3C Male     $5.00 each




Some applications include


Add to Cart

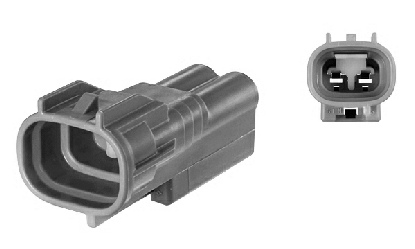

Sumitomo TS090 2-Pin Male Connector

This set comes complete with Terminals and Brown wire seals

Toyota part# 90980-11155,

Sumitomo part# 6188-0266 Japan




                                  TS090-2 Male $4.65 each




Some applications include

Nissan/Bosch J-48817-111

Add to Cart
