OEM Style Japanese Motorcycle Sumitomo MT 090 Connector with Built in Diode

View Cart

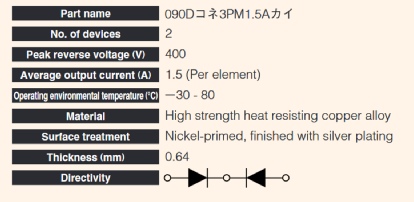

Sumitomo 3 Pin M Double Diode

Sumitomo part number 6098-0129

Part name 3P-CA 090D 3M1.5 C



                     Diode 3P-CA   $4.85 each  NO STOCK

About Me Kits Crimp tools Terminals Relay kits Relays Shipping Fuse box's Tubing Fuses New Items Connectors Home

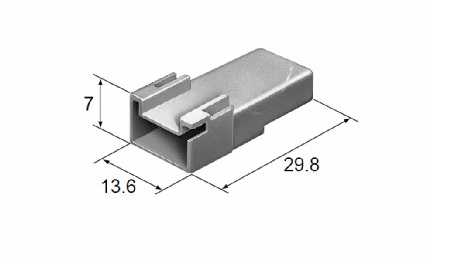

Sumitomo 3 Pin Female Connector

Sumitomo part number 6247-5031

Part name 090 3PF



 For use with above diode 6098-0129



These come with terminals for 16-20 gauge wire.



               MT090 3F Diode  $2.50 each

MT 090 Diode

Sumitomo MT 090 series with built in diode for security systems, circuit isolating.

Single or double diode and connectors using the MT 090 non sealed terminal.

These are found on Honda/Acura Toyota/Lexus security systems, Honda motorcycle neutral and clutch switch circuits.

Extra Female Terminals for HM 090 non-Sealed
 8240-4422 Japan
 Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)
$0.16 each   HM Female






For HM, MT, HD, DS, series 090 connectors
This terminal is used for some HW 090 sealed connectors that use a single seal on the back side.
Add to Cart

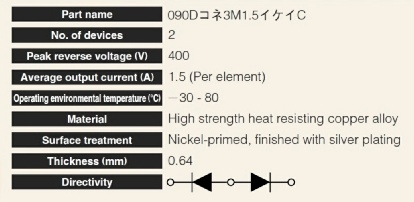

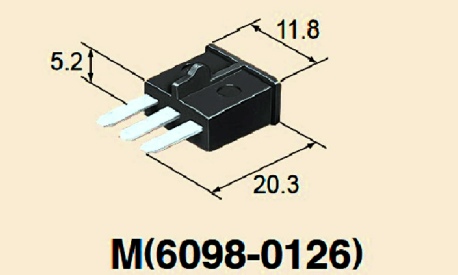

Sumitomo 3 Pin M Double Diode

Sumitomo part number 6098-0126

Part name  090D 3PM 1.5A



                     Diode 3P-CA   $4.75 each NO STOCK

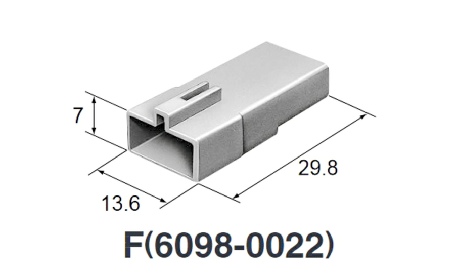

Sumitomo 3 Pin Female Connector

Sumitomo part number 6098-0022



 For use with above diode 6098-0126




These come with terminals for 16-20 gauge wire.
