OEM Style Japanese Motorcycle Electrical Connectors - JAE MX23A, MX47 Series

View Cart

Nice selection of the most common JAE MX23A series sealed connectors,

commonly found on Some  Yamaha Road Star, Suzuki - Kawasaki ZX6-ZX10,  and  Performance Electronics

PCM-ECM-ECU - Programmed Fuel Injection Control units.

JAE MX23A Female connector 18 pin

MX23A18SF1 and MX23A18XF1


For Some PCM-ECM-ECU and electronic control units used by

Some Yamaha Road Star, Suzuki Hayabusa/GSXR, Kawasaki ZX10, Performance Electronics PE3 and others. Please compare with what you have and need.

Some Honda GL1800 - Seat Heater Control Unit Connector.

Made in Japan


Comes complete with 16 - 22 awg terminals,

Wire seal incorporated into the housing. and Front Cap


JAE MX23A Series Connectors

JAE MX23 Female Terminals

16 - 22 awg (.3 - 1.25mm)








Crimp tool for the MX23A terminals are Located at the bottom of the page

Add to Cart
JAE MX23A Female Terminal 16-22      $0.20 each
Add to Cart
JAE MX23A  -  18 pin
Female Housing Black - $9.85 each

JAE MX23A Female connector 26 pin

MX23A26SF1 and MX23A26XF1



For Some PCM-ECM-ECU and electronic control units used by

Suzuki GSXR, 05 up Kawasaki ZX6R, Performance Electronics PE3 and others.

Please compare photo with what you have and need.

Made in Japan



Comes complete with 16 - 22 awg terminals,

Wire seal incorporated into the housing, and Front Cap


Add to Cart
JAE MX23A  -  26 pin
Female Housing Black - $12.45 each

JAE MX23A Female connector 34 pin

MX23A34SF1 and MX23A34XF1

For Some PCM-ECM-ECU and electronic control units used by

Suzuki GSXR, 05 up Kawasaki ZX6R, Performance Electronics PE3 and others.
Please compare photo with what you have and need.

Made in Japan




Comes complete with 16 - 22 awg terminals,

Wire seal incorporated into the housing, and Front Cap


Add to Cart
JAE MX23A  -  34 pin
Female Housing Black - $13.65 each
Extra MX23 Female Terminals

JAE MX23 Dummy Plug

Blank Hole Cavity plug



Add to Cart
JAE MX23A Dummy Plug      $0.20 each

Economy  - Micro Open Barrel Crimp Tool

For JAE 040, Metri-pack GT150, Sumitomo 090 - 040 Terminals, Insulation and Wire Seals 16 - 30 AWG

Made in USA by Rostra

I have used this and  you can get factory quality crimps with it. This tool does the wire crimp, then the insulation or wire seal crimps in 2 steps.

If your not doing this type of crimping all the time, great tool to add to your box, and you cant beat the price. Pick up a few extra terminals to practice with.


These will not do Bullet terminals, or 110, 250 standard terminals



                                                          $33.95 each   ECT47

Add to Cart

JAE MX23A Female connector 34 pin

MX23A34SF2 and MX23A34XF1

Alternate Keying - Gray housing


For Some PCM-ECM-ECU and electronic control units used by

Some Yamaha Road Star, Suzuki GSXR, 05 up Kawasaki ZX6R, Performance Electronics PE3 and others.
Please compare photo with what you have and need.



Comes complete with 16 - 22 awg terminals,

Wire seal incorporated into the housing, and Front Cap


Add to Cart
JAE MX23A  -  34 pin
Female Housing Gray - $15.75 each
This crimp was done with this tool listed
Using dies B and E
About Me Kits Crimp tools Terminals Relay kits Relays Shipping Fuse box's Tubing Fuses New Items Connectors Home

JAE MX23A Female connector 36 pin

MX23A36SF1 and MX23A36XF1


For Some PCM-ECM-ECU and electronic control units used by

Suzuki GSXR, 05 up Kawasaki ZX6R, Performance Electronics PE3 and others.
Please compare photo with what you have and need.

Made in Japan




Comes complete with 16 - 22 awg terminals,

Wire seal incorporated into the housing, and Front Cap


JAE MX23A Female connector 36 pin

MX23A36SF2 and MX23A36XF1

Alternate Keying - Gray housing


For Some PCM-ECM-ECU and electronic control units used by

Some Yamaha Road Star, Suzuki GSXR, 05 up Kawasaki ZX6R,

Performance Electronics PE3 and others.
Please compare photo with what you have and need.



Comes complete with 16 - 22 awg terminals,

Wire seal incorporated into the housing, and Front Cap


Add to Cart
JAE MX23A  -  36 pin
Female Housing Black - $23.95 each
Add to Cart
JAE MX23A  -  36 pin
Female Housing Gray - $23.95 each

JAE MX23A Male header connector 34 pin

MX23A34NF1 MX23A 34 pin Header

Mates with MX23A34SF1


For Some PCM-ECM-ECU and electronic control units used by

Suzuki GSXR, 05 up Kawasaki ZX6R, Performance Electronics PE3 and others.
Please compare photo with what you have and need.

Made in Japan


Comes complete with terminal incorporated in housing



Add to Cart
JAE MX23A  -  34 pin
Male Header Black - $9.35 each

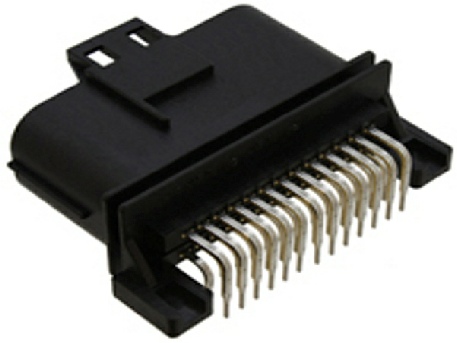

JAE MX23A Male header connector 26 pin

MX23A26NF1 MX23A 34 pin Header

Mates with MX23A26SF1


For Some PCM-ECM-ECU and electronic control units used by

Suzuki GSXR, 05 up Kawasaki ZX6R, Performance Electronics PE3 and others.
Please compare photo with what you have and need.

Made in Japan


Comes complete with terminal incorporated in housing


Add to Cart
JAE MX23A  -  26 pin
Male Header Black - $10.75 each
