OEM Style Japanese Motorcycle Electrical Connectors - JAE MX19 Series

View Cart

Nice selection of MX19 series sealed connectors from Japanese Aviation Electronics.

Commonly found on Harley Davidson Turn signal lighting.



This is one of the smallest sealed connector you will find on the market.

Great for low current,and LED Lighting.

Keep checking back for links on How to’s, Wiring Diagrams, and other great information.

If you have any Questions, please feel free to Email me here

JAE MX1900  2 Pin Connector Black

Made in Japan


Comes complete with 20 - 24 awg terminals

Wire seal incorporated into the housing.



             MX19-2 Male Blk     $4.95 each



             MX19-2 Female Blk $4.75 each



             MX19-2 Set Blk       $7.95 each

JAE MX1900 Series Connectors

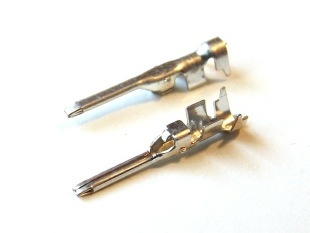

JAE MX1900 Male Terminals

20-24 awg (.2 - .5mm)



JAE MX19
Male Terminal 20-24

$0.19 each
Extra MX19 Terminals

JAE MX1900 Female Terminals

20-24 awg (.2 - .5mm)



JAE MX1900  2 Pin Connector Gray

Made in Japan


Comes complete with 20 - 24 awg terminals,

Wire seal incorporated into the housing.



             MX19-2 Male Gry     $5.15 each



             MX19-2 Female Gry $4.95 each



             MX19-2 Set Gry       $8.15 each

JAE MX1900  4 Pin Connector Black

Made in Japan


Comes complete with 20 - 24 awg terminals

Wire seal incorporated into the housing.



             MX19-4 Male Blk     $4.95 each



             MX19-4 Female Blk $4.75 each



             MX19-4 Set Blk       $7.95 each

JAE MX1900 4 Pin Connector Gray

Made in Japan


Comes complete with 20 - 24 awg terminals

Wire seal incorporated into the housing.



              MX19-4 Male Gry     $5.15 each



              MX19-4 Female Gry $5.05 each



              MX19-4 Set Gry       $8.15 each

JAE MX19
Female Terminal 20-24

$0.21 each
Male
Female
Male
Female
Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart
Male
Female
Add to Cart Add to Cart Add to Cart
About Me Kits Crimp tools Terminals Relay kits Relays Shipping Fuse box's Tubing Fuses New Items Connectors Home
Dime
Add to Cart Add to Cart Add to Cart

JAE MX1900  Empty Cavity Plug




Dummy Plug

$0.15 each
Add to Cart

PA-09 Micro Terminal Crimp tool for Mini Multilock terminals

Made in Japan


This tool has multiple terminal applications.

Amp Mini Multilock, JST, Molex, and many others.



(This will work with the JAE MX19 terminals if you are careful.

As the insulation crimps are designed differently on the MX19)




                         PA-09 $44.95 each








Die thickness is 1.7 and 2.0mm

Die width is shown on the tool  1mm, 1.4mm, 1.6mm, 1.9mm,


Normally sell for $56.00 to $75.00



For terminals available at Cycle Terminal - This tool is only recommended for the Mini Multilock and JAE MX19.

Add to Cart
This is the only tool I have that work decent with these small terminals.
