OEM Automotive Electrical Connectors - JAE IL-AG5 Series Connector

View Cart

Japanese Aviation Electronics Connectors, Common connector throughout the auto industry.

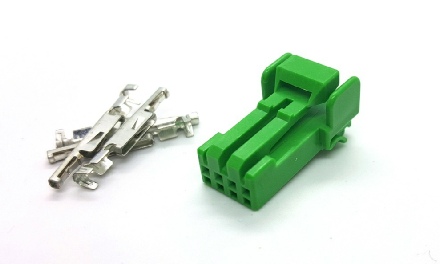

JAE IL-AG5-4S-S3C1 4 Cavity Socket Connector

Terminal conductor size 18 - 22 awg (.3 - .85mm)

Comes Complete with Connector, Terminal.







Includes:

IL-AG5-4S-S3C1

IL-AG5-C1-5000


Applications include:



IL-AG5 4 Socket  $3.55 each
JAE IL-AG5 Connectors
Add to Cart
About Me Kits Crimp tools Terminals Relay kits Relays Shipping Fuse box's Tubing Fuses New Items Connectors Home

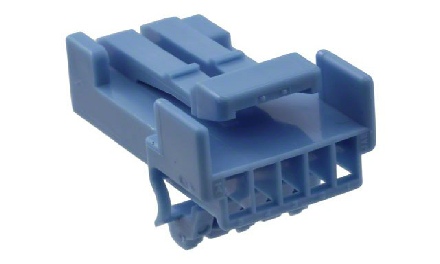

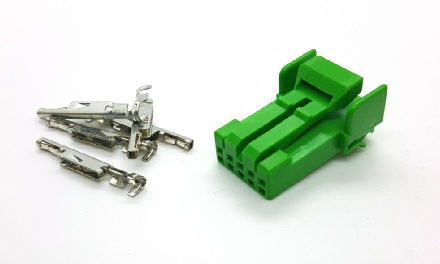

JAE IL-AG5-5S-S3C1 5 Cavity Socket Connector

Terminal conductor size 18 - 22 awg (.3 - .85mm)

Comes Complete with Connector, Terminal.







Includes:

IL-AG5-5S-S3C1

IL-AG5-C1-5000


Applications include:

Honda JDM-EDM 6 pin latching switch connector

TCS connector, headlight motor switch



IL-AG5 5 Socket  $3.70 each
Add to Cart

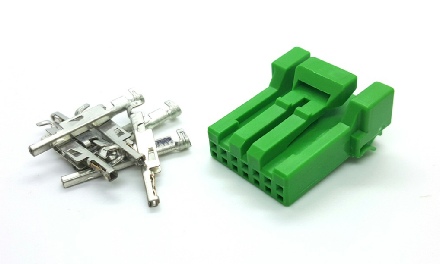

JAE IL-AG5-7S-S3C1 7 Cavity Socket Connector

Terminal conductor size 18 - 22 awg (.3 - .85mm)

Comes Complete with Connector, Terminal.







Includes:

IL-AG5-7S-S3C1

IL-AG5-C1-5000




IL-AG5 7 Socket  $4.00 each
Add to Cart

There is a MINIMUM ORDER of $5.00  on order total.

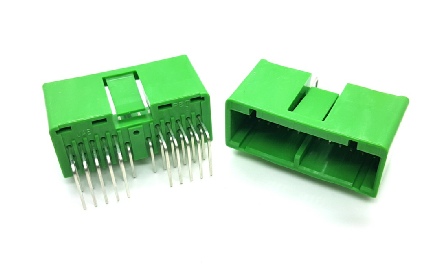

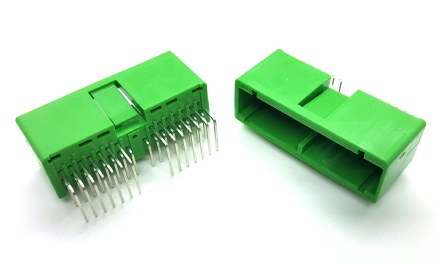

JAE IL-AG5-22P-D3L2 22 Cavity Header Connector










Includes:

IL-AG5-22P-D3L2



Applications include:

Honda-Acura Instrument cluster connector

Climate control unit connector


IL-AG5 22 Header  $4.25 each
Add to Cart

JAE IL-AG5-30P-D3L2  30 Cavity Header Connector










Includes:

IL-AG5-30P-D3L2



Applications include:

Honda-Acura Instrument cluster connector

Climate control unit connector


IL-AG5 30 Header  $4.45 each
Add to Cart

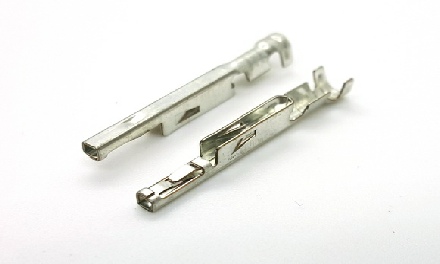

JAE IL-AG5-C1-5000 Female Socket Terminal

Terminal conductor size 18 - 22 awg (.3 - .85mm)








Includes:

IL-AG5-C1-5000




IL-AG5 Female  $0.15 each
Add to Cart

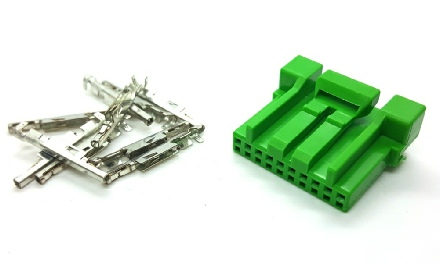

JAE IL-AG5-10S-S3C1 10 Cavity Socket Connector

Terminal conductor size 18 - 22 awg (.3 - .85mm)

Comes Complete with Connector, Terminal.







Includes:

IL-AG5-10S-S3C1

IL-AG5-C1-5000




IL-AG5 10 Socket  $4.05 each
Add to Cart

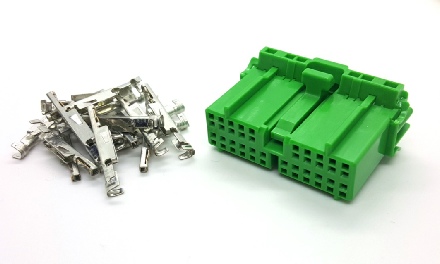

JAE IL-AG5-22S-D3C1 22 Cavity Socket Connector

Terminal conductor size 18 - 22 awg (.3 - .85mm)

Comes Complete with Connector, Terminal.







Includes:

IL-AG5-22S-D3C1

IL-AG5-C1-5000



Applications include:

Honda-Acura CCU connector

Honda-Acura Mazda Instrument cluster connector

IL-AG5 22 Socket  $5.65 each
Add to Cart

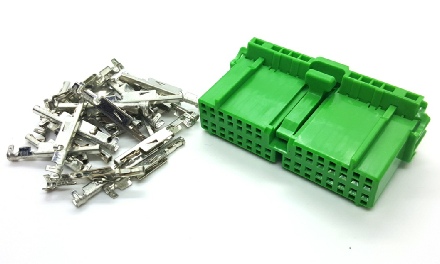

JAE IL-AG5-30S-D3C1 30 Cavity Socket Connector

Terminal conductor size 18 - 22 awg (.3 - .85mm)

Comes Complete with Connector, Terminal.







Includes:

IL-AG5-30S-D3C1

IL-AG5-C1-5000



Applications include:

Honda-Acura-Mazda Instrument cluster connector


IL-AG5 30 Socket  $5.95 each
Add to Cart

Economy  - Micro Open Barrel Crimp Tool

For JAE 040, Metri-pack GT150, Sumitomo 090 - 040 Terminals, Insulation and Wire Seals 16 - 30 AWG

Made in USA by Rostra

I have used this and  you can get factory quality crimps with it. This tool does the wire crimp, then the insulation or wire seal crimps in 2 steps.

If your not doing this type of crimping all the time, great tool to add to your box, and you cant beat the price. Pick up a few extra terminals to practice with.


These will not do Bullet terminals, or 110, 250 standard terminals



                                                          $33.95 each   ECT47

Add to Cart

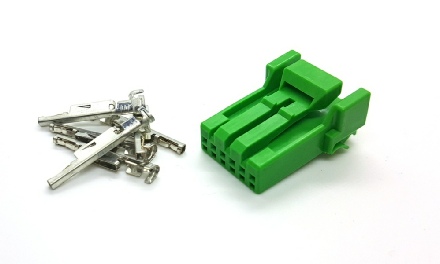

JAE IL-AG5-6S-S3C1 6 Cavity Socket Connector

Terminal conductor size 18 - 22 awg (.3 - .85mm)

Comes Complete with Connector, Terminal.







Includes:

IL-AG5-6S-S3C1

IL-AG5-C1-5000


Applications include:

Honda JDM-EDM 6 pin latching switch connector

TCS connector, headlight motor switch



IL-AG5 6 Socket  $3.85 each
Add to Cart

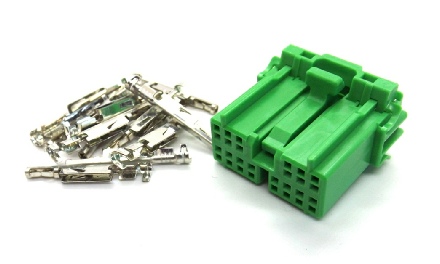

JAE IL-AG5-10S-D3C1 10 Cavity Socket Connector

Terminal conductor size 18 - 22 awg (.3 - .85mm)

Comes Complete with Connector, Terminal.







Includes:

IL-AG5-14S-D3C1-A

IL-AG5-C1-5000



Applications include:

Honda-Acura CCU connector


IL-AG5 14 Socket  $4.55 each
Add to Cart
