OEM Style Japanese Electrical Harness Wiring  Connector Sumitomo HX - .060

Sumitomo - HX Sealed 060 Connectors are used for components like purge control valves, duty cycle solenoids, Air fuel ratio sensor, on many makes and models including Honda, Acura, Toyota,  Lexus, Mazda, Suzuki, and Yamaha.

All connectors Come complete with male or female terminals and Wire seals.

More Terminals, seals, and plugs available at the bottom of the page

Sumitomo HX 060 2 pin Female Connector - with Terminals and seals

Terminals Fit wire size  0.3-0.5mm2 (20-22 AWG)

Sumitomo part number 6189-7408 Genuine Japan

                           Female HX060-2     $2.95 each

Economy  - Micro Open Barrel Crimp Tool

For   Sumitomo 090 - 040 Terminals, JAE 040, Insulation and Wire Seals 16 - 30 AWG

Made in USA by Rostra

I have used this and  you can get quality crimps with it. This tool does the wire crimp, then the insulation or wire seal crimps in 2 steps.

If your not doing this type of crimping all the time, great tool to add to your box, and you cant beat the price. Pick up a few extra terminals to practice with.

This will not do Bullet terminals,110, or 250 standard terminals

                                                          $33.95 each   ECT47

Minimum $5.00 on all orders

Sumitomo HX 060 2 pin Male Connector - with Terminals and seals

Terminals Fit wire size  0.3-0.5mm2 (20-22 AWG)

Sumitomo part number 6181-6851 Genuine Japan

                              Male HX060-2     $3.55 each

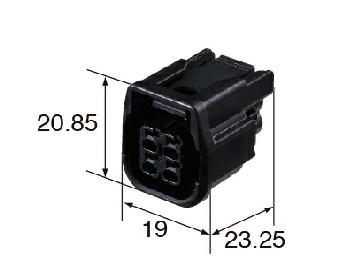

Sumitomo HX 060 4 pin Female Connector - with Terminals and seals

Terminals Fit wire size  0.3-0.5mm2 (20-22 AWG)

Sumitomo part number 6189-7409 Genuine Japan

                           Female HX060-4     $3.80 each

Applications include

Sumitomo HX 060 4 pin Male Connector - with Terminals and seals

Terminals Fit wire size  0.3-0.5mm2 (20-22 AWG)

Sumitomo part number 6181-6783 Genuine Japan

                              Male HX060-4     $4.75 each

Applications include

Sumitomo HX 060 12 pin Female Connector - with Terminals and seals

Terminals Fit wire size  0.3-0.5mm2 (20-22 AWG)

Sumitomo part number 6189-7410 Genuine Japan

                         Female HX060-12     $4.80 each

Applications include

Honda/Acura NC1 NSX

Sumitomo HX 060 12 pin Male Connector - with Terminals and seals

Terminals Fit wire size  0.3-0.5mm2 (20-22 AWG)

Sumitomo part number 6181-6784 Genuine Japan

                            Male HX060-12     $6.20 each

Applications include

Honda/Acura NC1 NSX

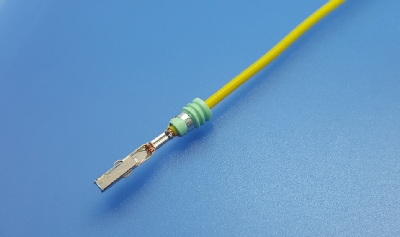

Sumitomo HX 060 (1.5mm) Female Terminal

Terminals Fit wire size  0.3-0.5mm2 (20-22 AWG)

Sumitomo part number 8240-0490 Genuine Japan

                              Female HX060     $0.16 each

Applicable wire size - 0.3-0.5mm2

Materials - Heat-resistant copper alloy

Surface treatment - Tin-plated

Sumitomo HX 060 (1.5mm) Male Terminal

Terminals Fit wire size  0.3-0.5mm2 (20-22 AWG)

Sumitomo part number 8230-5307 Genuine Japan

                                 Male HX060     $0.18 each

Applicable wire size - 0.3-0.5mm2

Materials - Heat-resistant copper alloy

Surface treatment - Tin-plated

Sumitomo HX 060 (1.5mm) Wire Seal

For Cable diameter (mm)  1.35-1.9  (18-22 AWG)

Sumitomo part number 8230-5307

                         HX060 Seal Green    $0.14 each

Applicable wire size - Cable overall diameter (mm)  1.35-1.9

Materials - Silicone

Sumitomo HX 060 090 Dummy Plug

Sumitomo part number 7160-9787 7161-9787 7165-0193

                          HX060 Cavity Plug    $0.15 each

Materials - NBR 7160-9787

Color - Black

Sumitomo HX 060 8 pin Female Connector - with Terminals and seals

Terminals Fit wire size  0.3-0.5mm2 (20-22 AWG)

Sumitomo part number 6189-7423 Genuine Japan

                           Female HX060-8     $3.95 each

Applications include

Honda/Acura air fuel ratio sensor

Sumitomo HX 060 8 pin Male Connector - with Terminals and seals

Terminals Fit wire size  0.3-0.5mm2 (20-22 AWG)

Sumitomo part number 6181-6850 Genuine Japan

                              Male HX060-8     $4.65 each

Applications include

Honda/Acura air fuel ratio sensor
