OEM Style Japanese Electrical Harness Wiring  Connector Sumitomo HW Type .090 - 2.3mm

View Cart

HW 090 Sealed Motorsport Connectors

Common connector used on Honda, Kawasaki and others from the early 90’s to mid 2000’s

2 pin HW 090 Female Fuel Injector connector

with Retainer, Terminals, & Seals

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Part numbers 6189-0533




Female Housing - Female HW 090-2 FI $3.85 each



Fuel Injector connector

RS120 /RS250 ignition coil connector

Sumitomo - HW Sealed(Mounting Bracket type) - for .090 - 2.3mm Terminal.

These Connector s are used highly on TPS, CAM, CRANK, Sensors for GSXR and YZF Models.

All connectors Come complete with male, female terminals and Wire seals.

For wire sizes . - 1.3mm (16-22 AWG)

More Terminals, seals, and plugs available at the bottom of the page

Sumitomo HW 090 Series

Extra Terminals For HW .090  Connectors

2.3mm - .090 Tin plated

Male Terminal

.5 - 1.3 mm (16-22 AWG)

Locks into housing




$0.18 each

MPT1620 090

2.3mm - .090 Tin Plated

Female Terminal

.5 - 1.3 mm (16-22 AWG)

Locks into housing




$0.20 each

FPT1620 090

HW Wire seal  Small

7165-0118

.5 - 1.3 mm (18-22 AWG)



$0.17 each

Wire Seal HX 090-S

HW Cavity Plug .090






$0.15 each

Plug 090 HW

3 pin HW - .090 Female connector - with Retainer, Terminals, and Seals

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Part numbers 6918-0130 & 6918-0324



Female Housing  - Female HW 090-3B   $3.25 each


Used for Honda/Acura VSS Sensor connector

CBR Wheel-speed sensor connector

3 pin HW - .090 Female Connector - with Retainer, Terminals, and Seals

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)






Female Housing  - Female HW 090-3C  $4.25 each


Very Common Honda-Acura connector from the late 80’s - mid 2000’s

Used for Honda/Acura MAP, TPS Sensor connector, VFR1000 TPS

Secondary Throttle bodies on Some Honda Acura vehicles equipped with traction control.

HW Wire seal  Large

7165-0118

.75 - 2 mm (14-18 AWG)



$0.17 each

Wire Seal HX 090-L

8 pin HW - .090 Female Connector - with Retainer, Terminals, and Seals

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Part numbers 6189-0134, 6918-0332





Female Housing  - Female HW 090-8    $4.85 each


Very Common Honda-Acura connector from the late 80’s - mid 2000’s

Used for Honda Prelude Distributor connector, A/F Ratio sensor connector

Acura Ignition Module, and Transmission.


Add to Cart Add to Cart Add to Cart Add to Cart
About Me Kits Crimp tools Terminals Relay kits Relays Shipping Fuse box's Tubing Fuses New Items Connectors Home

3 pin HW - .090 Male & Female connector - with Retainer, Terminals, & Seals

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Part numbers 6189-0131, 6918-0326, 6181-0072, 6918-0327


Male Housing        - Male HW 090-3     $3.75 each




Female Housing    - Female HW 090-3  $4.75 each

Add to Cart Add to Cart
Female
Male

2 pin HW 090 Male & Female connector - with Retainer, Terminals, & Seals

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Part numbers 6189-0129, 6918-0322, 6181-0070, 6918-0323


Male Housing        - Male HW 090-2     $2.85 each




Female Housing    - Female HW 090-2  $2.75 each



used as some early model OBD1 Honda Vtec Solenoid connectors

Add to Cart Add to Cart
Female
Male

8 pin HW - .090 Male Connector - with Retainer, Terminals, and Seals

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Part numbers 6181-0075, 6918-0333





        Male Housing - Male HW 090-8    $5.65 each


Very Common Honda-Acura connector from the late 80’s - mid 2000’s

Used for Honda Prelude Distributor connector, A/F Ratio sensor connector

Acura Ignition Module, and Transmission.


Add to Cart

6 pin HW - .090 Female Connector - with Retainer, Terminals, and Seals

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Part numbers 6189-0331, 6918-0330





Female Housing  - Female HW 090-6    $4.35 each


Very Common Honda-Acura connector from the late 80’s - mid 2000’s



Add to Cart

4 pin HW - .090 Male Connector - with Retainer, Terminals, and Seals

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Part numbers 6181-0073 & 6918-0329





    Male Housing - Female HW 090-4    $4.65 each


Very Common Honda-Acura connector from the late 80’s - mid 2000’s

Used for Honda-Acura O2 Sensor connector

NGK-NTK O2 Sensor Connector

Add to Cart

4 pin HW - .090 Female Connector - with Retainer, Terminals, and Seals

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Part numbers 6189-0132 & 6918-0328





Female Housing  - Female HW 090-4    $4.55 each


Very Common Honda-Acura connector from the late 80’s - mid 2000’s

Very Common Honda-Acura connector from the late 80’s - mid 2000’s

Used for Honda-Acura O2 Sensor connector

NGK-NTK O2 Sensor Connector

Add to Cart

2 pin HW 090 VTEC Pressure switch -  Knock Sensor

Coolant-Air Temp Sensor connector.

with Retainer, Terminals,  Seals

Part numbers 6189-0156, , 6918-0360, 7165-0095


Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)


Female Housing - Female HW 090-2 TA $7.65 each



Honda/Acura OBD1 V-Tec Pressure switch Connector

Honda/Acura Temp Sensor/Coolant Fan switch Connector

Honda/Acura Power Steering Pressure switch Connector


2008 -2015 Hayabusa Intake Air Temperature - IAT Connector

Radiator Fan Switch Connector for the following models-

Hayabusa GSX1300R 1999-2007

GSXR 1000 2001-2004

TL 1000S   1997-2001

GSXR 750 1996-2005

GSXR 600 1997-2005




Green connector used for OBD1 Vtec Oil Pressure Switch


                        Female HW 090-2 Vtec $6.45 each





This housing does not use the terminals at the bottom of this page

Extra female terminals - HM Female       $0.15 each


Add to Cart Add to Cart

1 pin HW 090 Female connector

with Retainer, Terminals, & Seals

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Part numbers 6189-0386 and 6918-0698




Female Housing - Female HW 090-1    $2.95 each



used as some early model Honda Knock sensor connectors

used as some early model Honda Vtec Solenoid connectors

Add to Cart

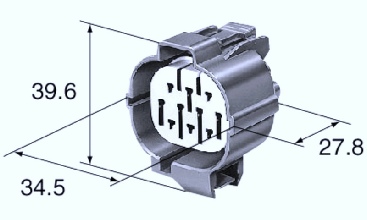

10 pin HW - .090 Female Connector - with Retainer, Terminals, and Seals

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Part numbers 6189-0135, 6918-0334





Female Housing - Female HW 090-10    $4.95 each


Very Common Honda-Acura connector from the late 80’s - mid 2000’s

Used for Honda/Acura Main Engine harness connector


Add to Cart

10 pin HW - .090 Male Connector - with Retainer, Terminals, and Seals

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Part numbers 6181-0076, 6918-0335





      Male Housing - Male HW 090-10    $5.05 each


Very Common Honda-Acura connector from the late 80’s - mid 2000’s

Used for Honda/Acura Main Engine harness connector


Add to Cart

6 pin HW - .090 Male Connector - with Retainer, Terminals, and Seals

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Part numbers 6181-0074, 6918-0331





       Male Housing  - Male HW 090-6    $3.85 each


Very Common Honda-Acura connector from the late 80’s - mid 2000’s

Used for Honda Prelude Distributor connector, A/F Ratio sensor connector

Acura Ignition Module, and Transmission.


Add to Cart

3 pin HW - .090 Male Connector - with Retainer, Terminals, and Seals

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Part numbers 6181-0071 & 6918-0325





        Male Housing - Male HW 090-3B   $3.65 each


Used for Honda/Acura  VSS - Vehicle Speed Sensor connector

CBR Wheel-speed sensor connector

Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart

Economy  - Micro Open Barrel Crimp Tool

for HW- 090, 070, 040 sized terminals Made in USA by Rostra

Metri-pack GT150. Sumitomo 090  - 040, JAE 040, Molex MX150, AMP Multi-lock 070 Terminals, Insulation and Wire Seal 16 - 30 AWG

Using this tool you can get factory quality crimps. This tool does the wire crimp and then the insulation or wire seal crimps in 2 steps.

If your not doing this type of crimping all the time, great tool to add to your box, and you cant beat the price. Pick up a few extra terminals to practice with.


These will not do Bullet terminals, or 110, 250 standard terminals



                                                          $33.95 each   ECT47

14 pin HW - .090 Female Connector - with Retainer, Terminals, and Seals

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Part numbers 6189-0136, 6918-0336





Female Housing - Female HW 090-14    $6.10 each


Very Common Honda-Acura connector from the late 80’s - mid 2000’s

Used for Honda/Acura Main Engine harness connector


Add to Cart

14 pin HW - .090 Male Connector - with Retainer, Terminals, and Seals

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Part numbers 6181-0077, 6918-0337





      Male Housing - Male HW 090-14    $5.85 each


Very Common Honda-Acura connector from the late 80’s - mid 2000’s

Used for Honda/Acura Main Engine harness connector


Add to Cart

1 pin HW 090 Male connector

with Retainer, Terminals, & Seals

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Part numbers 6181-0227 and 6918-0699




Female Housing     - Male HW 090-1    $2.65 each



used as some early model Honda Vtec Solenoid connectors

Add to Cart

Cheap Shipping!!

Minimum $5.00 on all orders

Extra Terminals and Crimp Tool
at bottom of page
