OEM Sumitomo 22 Pin Honda ICM-ECU-ECM Connectors

View Cart

This 22 pin Sumitomo connector was used for many of Honda’s olde rand some later models from late 90’s to mid 2000’s.

Including some of the CBR and VFR, VT600, VT750, VT1100, VT1300



Economy  - Micro Open Barrel Crimp Tool

For JAE 040, Metri-pack GT150, Sumitomo 090 - 040 Terminals, Insulation and Wire Seals 16 - 30 AWG

Made in USA by Rostra

I have used this and  you can get factory quality crimps with it. This tool does the wire crimp, then the insulation or wire seal crimps in 2 steps.

If your not doing this type of crimping all the time, great tool to add to your box, and you cant beat the price. Pick up a few extra terminals to practice with.


These will not do Bullet terminals, or 110, 250 standard terminals



                                                          $33.95 each   ECT47

Add to Cart

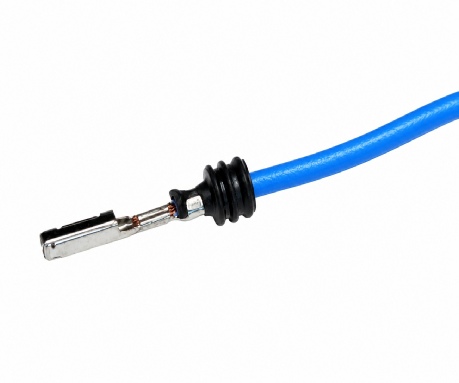

This crimp was done with this tool listed
Using dies B and E
About Me Kits Crimp tools Terminals Relay kits Relays Shipping Fuse box's Tubing Fuses New Items Connectors Home

Honda CDI/ICM 22 pin Connector

For Some Honda electronic ignition control units

Japan



Comes complete with 20 - 24 awg terminals, wire seals, and connector seal.






Honda - 22 pin Female Housing Black - $14.65 each




Some Applications include

2004-07 VT600 ICM

VT750DC ICM

VT1100 ICM

1998-08 VT1100 ICM

2003-09 VTX1300

2002-04 VTX1800 ECU/ECM connector

1998-2001 VFR
2000-2001 RC51
2004 CBR600F4i ECU/ECM connector




Add to Cart
Honda 22-pin Sealed ECM Connectors

Honda CDI/ICM 22 pin Connector

For Some Honda electronic ignition control units

Japan



Comes complete with 20 - 24 awg terminals, wire seals, and connector seal.






Honda - 22 pin Female Housing Gray - $16.95 each




Some Applications include

2004 CBR600F4i ECU/ECM connector

2002-2004 VTX1800 ECU/ECM connector

Add to Cart

ICM Female Terminal

.3 - .5 mm (20-24 AWG)





$0.15 each

ICM Terminal

Add to Cart

22 pin ECU Seal

For (18-24 AWG)





$0.22 each

Wire Seal

HM/MT Connector

Cavity Plug 2.3mm - .090






$0.18 each

Plug 090

Add to Cart Add to Cart
