OEM Style Japanese Electrical Harness Wiring  Connector Sumitomo HM Non-Sealed Type  - .090

2 pin HM Non Sealed .090  Male Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)

      HM090-2 Male   $1.75 each

Sumitomo - HM Non-Sealed -  .090 Connectors.

These Connector s are used highly on Yamaha and Suzuki.

All connectors Come complete with male, female terminals.

More Terminals, seals, and plugs available at the bottom of the page

Keep checking back for links on How to’s, Wiring Diagrams, and other great information.

If you have any Questions, please feel free to Email me Here

3 pin HM Non Sealed .090  Male Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)

      HM090-3 Male   $2.05 each

20 pin HM .090 Non-Sealed Junction-Splice Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)

Sumitomo part number

6440-0128 Pink Junction

6409-0073 Blue Junction

    Female HM090-20           $5.85 each

This HM non-sealed Blue junction has 4 individual bussed circuits that make it great for Signal bus, Ref voltage, grounds and power supply.

            Blue Male Cap  HM090-20       $5.05 each

            Pink Male Cap  HM090-20       $4.25 each

3 pin HM Non Sealed .090  Female Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)

  HM090-3 Female   $1.90 each

2 pin HM Non Sealed .090  Male Connector with Tree Clip

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)

      HM090-2M TC   $1.95 each

2 pin HM Non Sealed .090  Female Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)

  HM090-2 Female   $1.35 each

4 pin HM Non Sealed .090  Male Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)

      HM090-4 Male   $2.00 each

4 pin HM Non Sealed .090  Female Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)

  HM090-4 Female   $2.00 each

6 pin HM Non Sealed .090  Male Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)

Sumitomo p/n: 6090-1218

      HM090-6 Male   $2.60 each

6 pin HM Non Sealed .090  Female Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)

Sumitomo p/n: 6090-1218

  HM090-6 Female   $2.40 each

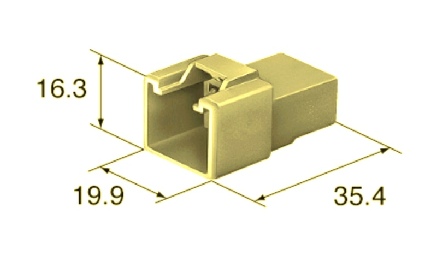

8 pin HM Non Sealed .090  Male Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)

Sumitomo p/n: 6090-1051

      HM090-8 Male   $2.70 each

8 pin HM Non Sealed .090  Female Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)

Sumitomo p/n: 6090-1021 Aftermarket

  HM090-8 Female   $2.70 each

10 pin HM Non Sealed .090  Male Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)

Sumitomo p/n: 6090-1056 Aftermarket

    HM090-10 Male   $3.40 each

                                 Black Nylon only

10 pin HM Non Sealed .090  Female Connector

Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)

Sumitomo p/n: 6090-1220 Aftermarket

HM090-10 Female   $2.90 each
