1 pin Sumitomo HD 250 Female

Terminals Fit wire sizes from .5mm - 2mm (14 - 20 AWG)

PN 6098-0234 Japan


Comes complete with terminals for 14-20 gauge wire.

Comes with secondary lock that is very hard to see in these photos.





                HD 250-1 Female  $2.45 each





Used for some Honda /Acura Fuse box accessory connector from early 90’s to 2009



Extra Terminals can be found at the bottom of this page

Add to Cart

1 pin Sumitomo HD 250 Male

Terminals Fit wire sizes from .5mm - 2mm (14 - 20 AWG)

PN 6098-0232 Japan


Comes complete with terminals for 14-20 gauge wire.

Comes with secondary lock that is very hard to see in these photos.





                HD 250-1 Male  $2.35 each





Used for some Honda /Acura Fuse box accessory connector from early 90’s to 2009



Extra Terminals can be found at the bottom of this page

Add to Cart
HD-250 Non Sealed Connectors

Extra Terminals For HD 250, 305, Hybrid Connector Sets

6.3mm - .250 Brass

Male Terminal


.5 - 2 mm (14 - 20 AWG)




$0.16 each

MST 1420N

6.3mm - .250 Brass

Female Terminal 1500-0068

Made in Japan

2 - 3 mm (12-14) AWG)



$0.24 each

FST 1214N

6.3mm - .250 Brass

Female Terminal 8240-4140


.5 - 2 mm (14-20 AWG)



$0.23 each

FST 1418N

6.3mm - .250 Brass

Male Terminal

2 - 3 mm2   (12 - 14 AWG)




$0.22 each

MST 1214N

Add to Cart Add to Cart Add to Cart Add to Cart

2 pin Sumitomo HD 250

Terminals Fit wire sizes from .5mm - 2mm (14 - 20 AWG)

PN 6098-0226 Japan


Comes complete with terminals for 14-20 gauge wire.

Comes with secondary lock that is very hard to see in these photos.





                HD 250-2 Female  $2.45 each





Used for some Honda CBR ignition switches

Used for Some Boss amp and Honda/Acura Boss amp power leads



Extra Terminals can be found at the bottom of this page

Add to Cart

2 pin Sumitomo HD 250

Terminals Fit wire sizes from .5mm - 2mm (14 - 20 AWG)

PN 6098-0224 Japan


Comes complete with terminals for 14-20 gauge wire.

Comes with secondary lock that is very hard to see in these photos.





                    HD 250-2 Male  $2.55 each





Used for some Honda CBR ignition switches

Used for Some Boss amp and Honda/Acura Boss amp power leads



Extra Terminals can be found at the bottom of this page

Add to Cart

3 pin Sumitomo HD 250 Female

Terminals Fit wire sizes from .5mm - 2mm (14 - 20 AWG)

PN 6098-0222 Japan


Comes complete with terminals for 14-20 gauge wire.

Comes with secondary lock that is very hard to see in these photos.





                HD 250-3 Female  $2.80 each





Used for some Honda Rectifier-Regulator Stator Connectors



Extra Terminals can be found at the bottom of this page

Add to Cart

3 pin Sumitomo HD 250 Male

Terminals Fit wire sizes from .5mm - 2mm (14 - 20 AWG)

PN 6098-0220 Japan


Comes complete with terminals for 14-20 gauge wire.

Comes with secondary lock that is very hard to see in these photos.





                    HD 250-3 Male  $2.85 each





Used for some Honda Rectifier-Regulator Stator Connectors



Extra Terminals can be found at the bottom of this page

Add to Cart

Sumitomo HD Series Mounting Clip

Fits HD 090 and 250 305 and Hybrid Series





    HD Tree Clip       $0.65 each

Add to Cart

7 pin Sumitomo HD 250-305 Hybrid Female

250 Terminals Fit wire sizes from 2mm - 3mm (12 - 14 AWG)

305 Terminals fit wire sizes from 2mm - 3mm (12 - 14 AWG)

PN 6950-0366 Japan



Comes with secondary lock.




     HD 250/305 -7 Female  $5.90 each





Used for some Honda/Acura ignition switch Connectors




7 pin Sumitomo HD 250-305 Hybrid Male

250 Terminals Fit wire sizes from 2mm - 3mm (12 - 14 AWG)

305 Terminals fit wire sizes from 2mm - 3mm (12 - 14 AWG)

PN 6950-1030 Japan



Comes with secondary lock.




        HD 250/305 -7 Male  $5.95 each





Used for some Honda/Acura ignition switch Connectors




HD 250/305 Hybrid Connectors

7.8mm - .305 Brass Female Terminal

Sumitomo Part Number:  8242-4050

Japan


Wire sizes(14 - 18 AWG)


Applicable wire size  0.85-2.0mm2 (14 - 18 AWG)

Cable overall diameter -  2.4-3.1mm

Material - Brass

Surface treatment - Anti-Corrosion treatment

Thickness - (0.4mm)



$0.48  each FST1418N

7.8mm - .305 Brass Male Terminal

Sumitomo Part Number:  8232-4220

Japan


Wire sizes(14 - 18 AWG)


Applicable wire size  0.85-2.0mm2 (14 - 18 AWG)

Cable overall diameter -  2.4-3.1mm

Material - Brass

Surface treatment - Anti-Corrosion treatment

Thickness - (0.8mm)



$0.50 each MST1418N

Add to Cart Add to Cart
HD-250- 305 Hybrid Connectors
Add to Cart Add to Cart

7 pin Sumitomo HD 250 Female

Terminals Fit wire sizes from .5mm - 2mm (14 - 20 AWG)

PN 6098-0214 Japan


Comes complete with terminals for 14-20 gauge wire.

Comes with secondary lock that is very hard to see in these photos.





                HD 250-7 Female  $4.70 each





Used or some Honda Acura - Mitsuba Main Relay Connector



Extra Terminals can be found at the bottom of this page

Add to Cart

7 pin Sumitomo HD 250 Male

Terminals Fit wire sizes from .5mm - 2mm (14 - 20 AWG)

PN 6098-0212 Japan


Comes complete with terminals for 14-20 gauge wire.

Comes with secondary lock that is very hard to see in these photos.





                    HD 250-7 Male  $4.75 each





Used or some Honda Acura - Mitsuba Main Relay Connector


Extra Terminals can be found at the bottom of this page

Add to Cart

5 pin Sumitomo HD 250 Female

Terminals Fit wire sizes from .5mm - 2mm (14 - 20 AWG)

PN 6098-0218 Japan Genuine Sumitomo


Comes complete with terminals for 14-20 gauge wire.

Comes with secondary lock that is very hard to see in these photos.





                HD 250-5 Female  $4.05 each





Used for some Honda Ignition switch Connectors



Extra Terminals can be found at the bottom of this page

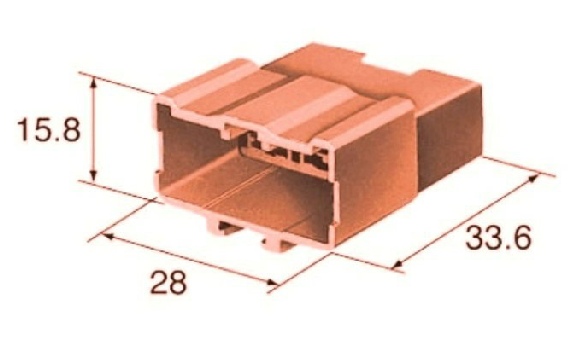

5 pin Sumitomo HD 250 Male

Terminals Fit wire sizes from .5mm - 2mm (14 - 20 AWG)

PN 6098-0216 Japan Genuine Sumitomo


Comes complete with terminals for 14-20 gauge wire.

Comes with secondary lock that is very hard to see in these photos.





                    HD 250-5 Male  $4.00 each





Used for some Honda Ignition switch Connectors



Extra Terminals can be found at the bottom of this page

Add to Cart Add to Cart
