Wiring Harness Connector Covers

Made of Soft PVC. Designed to cover Bullet terminals and connectors at the ends of the wiring harness, or harness break-out.

Motorcycle Harness Connector covers

Another tough one to source.

These are the Same covers sold by Web Bike Japan.

These soft PVC covers can be found at the ends of the wiring harness or harness break-outs.

At 1.5mm in thickness, these are available in 5 sizes

Extra Small, small, medium, large, and XL,  the clear medium is to come.

Extra Small    ( Not Pictured in Photo )

Harness end =  8 mm     Large end = 22 mm  -Total length = 65 mm      $3.20 each

Small

Harness end =  11 mm    Large end = 28 mm  -Total length = 70 mm      $3.45 each

Medium

Harness end = 12 mm     Large end = 35 mm  -Total length = 80 mm      $4.35 each

Large

Harness end = 17 mm     Large end = 38 mm  -Total length = 90 mm      $4.95 each

Extra Large

Harness end = 19 mm     Large end = 52 mm  -Total length = 100 mm    $5.75 each

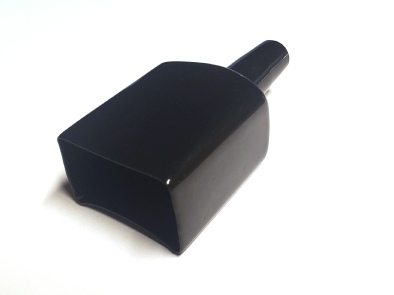

Square Harness Connector covers

These will fit over male and female

4 pin 250 connectors

6 pin 110 connectors

Specs

Large end Width = 26 mm

Large end Height = 18 mm

Harness end Diameter = 10 mm

Boot length = 40 mm

Total length = 76 mm

                                                                                              $3.55 each
