We have many Motorcycle Connector Types available to meet your needs,

Amphenol-Deutsch, Yazaki, Sumitomo, Hitachi

2.8mm - .110, 6.3mm - .250, 2.3mm - .090, Connector Sets with terminals

Amphenol - Deutsch AT-DT type connectors

Sealed, Waterproof Connectors by Amphenol, take size 16 terminals. Deutsch DT compatible

13-AMP contact rating.

A Nice Compact, sealed connector. A Great Connector for Lighting, Audio, and other Accessory add-on's, when keeping out the elements is a concern.

These sets Come complete with 16-18 AWG terminals, Wedgelock terminal retainers, and wire end seals (not shown).

Used by Heavy Duty truck manufactures, Compatible with Harley Davidson, and MSD ignitions.

Extra Terminals For Amphenol Connector Sets

2 Pin Sealed Connector by Amphenol, take size 16 terminals.

Deutsch DT compatible


Comes complete with 16-18 AWG terminals, Wedgelock terminal retainers,

and wire end seals (not shown).


Amphenol AT 2 pin Set        $5.95 each



Amphenol AT 2 pin Male      $2.85 each



Amphenol AT 2 pin Female  $3.75 each

3 Pin Sealed Connector by Amphenol, take size 16 terminals.

Deutsch DT compatible


Comes complete with 16-18 AWG terminals, Wedgelock terminal retainers,

and wire end seals (not shown).


Amphenol AT 3 pin Set        $6.75 each



Amphenol AT 3 pin Male      $3.05 each



Amphenol AT 3 pin Female  $4.15 each

4 Pin Sealed Connector by Amphenol, take size 16 terminals.

Deutsch DT compatible


Comes complete with 16-18 AWG terminals, Wedgelock terminal retainers,

and wire end seals (not shown).


Amphenol AT 4 pin Set        $7.25 each



Amphenol AT 4 pin Male      $3.75 each



Amphenol AT 4 pin Female  $4.60 each

Female
Male
Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart
Amphenol - Deutsch AT-DT type connectors - Size 16 Terminals
Extra Male terminals
for wire size 16-18 AWG - .75-1.3mm

Amphenol Male Terminal 16-18
$0.26 each
Add to Cart

Extra Female terminals
for wire size 16-18 AWG - .75-1.3mm

Amphenol Female Terminal 16-18
$0.37each
Add to Cart

6 Pin Sealed Connector by Amphenol, take size 16 terminals.

Deutsch DT compatible


Comes complete with 16-18 AWG terminals, Wedgelock terminal retainers,

and wire end seals (not shown).


Amphenol AT 6 pin Set        $9.85 each



Amphenol AT 6 pin Male      $4.45 each



Amphenol AT 6 pin Female  $6.15 each

12 Pin Sealed Connector by Amphenol, take size 16 terminals.

Deutsch DT compatible


Comes complete with 16-18 AWG terminals, Wedgelock terminal retainers,

and wire end seals (not shown).


Amphenol AT 12 pin Set       $16.95 each



Amphenol AT 12 pin Male      $7.75 each



Amphenol AT 12 pin Female $11.95 each

8 Pin Sealed Connector by Amphenol, take size 16 terminals.

Deutsch DT compatible


Comes complete with 16-18 AWG terminals, Wedgelock terminal retainers,

and wire end seals (not shown).


Amphenol AT 8 pin Set       $12.35 each



Amphenol AT 8 pin Male      $4.95 each



Amphenol AT 8 pin Female  $7.99 each

Amphenol Blank Seal
Size 16 Connector Plug 10 Pack
Amphenol AT Connector Blank Seal


$1.45  x 10Add to Cart

Extra Male terminals
for wire size 14-16 AWG - 1.3mm-2.0mm

Amphenol Male Terminal 14-16
$0.35 each

Extra Female terminals
for wire size 14-16 AWG - 1.3mm-2.0mm

Amphenol Female Terminal 14-16
$0.45 each

All Terminals listed are Open Barrel crimp type.
Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart

Amphenol AT/DT Wedgelock Removal Tool

For removing wedgelock retainer from male and female AT connector housings

(NOTE: Not needed for ATM type connectors.)





$9.95 each ATRT-100  -






Male
Male
Male
Male
Male
Female
Female
Female
Female
Female

Amphenol ATM - Deutsch DTM type connectors

Sealed Mini, Waterproof Connectors by Amphenol, take size 20 terminals. Deutsch DTM compatible

7-AMP contact rating.

A Nice Compact, sealed connector. A Great Connector for Lighting, Audio, and other Accessory add-on's,

when keeping out the elements is a concern.

Wedgelocks were designed to be removed with needle nose plies, no special tools needed.


These sets Come complete with 16-22 AWG terminals, Wedgelock terminal retainers, and wire end seals (not shown).

4 Pin Sealed Connector by Amphenol, take size 20 terminals.

Deutsch DTM compatible


Comes complete with 16-22 AWG terminals, Wedgelock terminal retainers,

and wire end seals (not shown).


Amphenol ATM 4 pin Set       $9.65 each



Amphenol ATM 4 pin Male      $4.85 each



Amphenol ATM 4 pin Female  $5.85 each

Male
Female

2 Pin Sealed Connector by Amphenol, take size 20 terminals.

Deutsch DTM compatible


Comes complete with 16-22 AWG terminals, Wedgelock terminal retainers,

and wire end seals (not shown).


Amphenol ATM 2 pin Set        $6.25 each



Amphenol ATM 2 pin Male      $3.15 each



Amphenol ATM 2 pin Female  $3.45 each

Female
Male
Amphenol ATM - Deutsch DTM Compatible Connectors - size 20 Terminals
Add to Cart Add to Cart
ATM/DTM Male terminals
for wire size 16-22 AWG - .3mm-1.3mm

ATM Male Terminal 16-22
$0.24 each

ATM/DTM Female terminals
for wire size 16-22 AWG - .3mm-1.3mm

ATM Female Terminal 16-22
$0.37 each

Amphenol Blank Seal
Size 20 Connector Plug 10 Pack
ATM Connector Blank Seal


$1.85  x 10
Add to Cart Add to Cart Add to Cart Add to Cart

6 Pin Sealed Connector by Amphenol, take size 20 terminals.

Deutsch DTM compatible


Comes complete with 16-22 AWG terminals, Wedgelock terminal retainers,

and wire end seals (not shown).


Amphenol ATM 6 pin Set      $10.25 each



Amphenol ATM 6 pin Male      $5.35 each



Amphenol ATM 6 pin Female  $6.45 each

Male
Female
Add to Cart Add to Cart Add to Cart

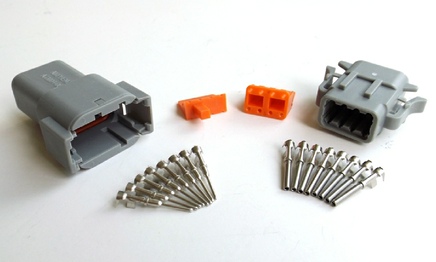

8 Pin Sealed Connector by Amphenol, take size 20 terminals.

Deutsch DTM compatible


Comes complete with 16-22 AWG terminals, Wedgelock terminal retainers,

and wire end seals (not shown).


Amphenol ATM 8 pin Set      $12.25 each



Amphenol ATM 8 pin Male      $6.35 each



Amphenol ATM 8 pin Female  $6.95 each

Male
Female
Add to Cart Add to Cart Add to Cart

3 Pin Sealed Connector by Amphenol, take size 20 terminals.

Deutsch DTM compatible


Comes complete with 16-22 AWG terminals, Wedgelock terminal retainers,

and wire end seals (not shown).


Amphenol ATM 3 pin Set       $6.95 each



Amphenol ATM 3 pin Male      $3.85 each



Amphenol ATM 3 pin Female  $4.85 each

Male
Female
Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart
About Me Kits Crimp tools Terminals Relay kits Relays Shipping Fuse box's Tubing Fuses New Items Connectors Home

12 Pin Sealed Connector by Amphenol, take size 20 terminals.

Deutsch DTM compatible


Comes complete with 16-22 AWG terminals, Wedgelock terminal retainers,

and wire end seals (not shown).


Amphenol ATM 12 pin Set     $13.95 each



Amphenol ATM 12 pin Male     $7.45 each



Amphenol ATM 12 pin Female $7.90 each

Male
Female
Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart

Terminal Removal tool for Amphenol  ATM  - Deutsch DTM

Deutsch Branded For size 20 Terminals




   AT/RT 20 $5.95 each

Terminal Removal tool for Amphenol  AT  - Deutsch DT

Deutsch Branded for size 16 Terminals




  AT/RT 16 $5.95 each

Terminal Removal tool for Amphenol  ATP  - Deutsch DTP

Deutsch Branded for size 12 Terminals




  AT/RT 12 $5.95 each
